300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter
300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter
300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter
300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter

SKU: SG-300W-220V-WIFI

SKU: MPS-MAX 10.2KW-48V-M180A

300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter

300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter
€52,86

289 Reviews!
€52,86
Title
Title

Quantity:

Quantity:

SKU: MPS-MAX 10.2KW-48V-M180A

SKU: SG-300W-220V-WIFI

300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter

300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter

289 Reviews!
€52,86
€52,86
Title
Title

Quantity:

Quantity:

Buy it with

Buy it with
2M 3*2.5mm AC power cable fit for SG series inverters
2M 3*2.5mm AC power cable fit for SG series inverters
2M 3*2.5mm AC power cable fit for SG series inverters
2M 3*2.5mm AC power cable fit for SG series inverters

2M 3*2.5mm AC power cable fit for SG series inverters
€10,90
2M 3*2.5mm AC power cable fit for SG series inverters
2M 3*2.5mm AC power cable fit for SG series inverters

2M 3*2.5mm AC power cable fit for SG series inverters
€10,90

Product Attachments

Product Attachments












User Manual of SG-300W-220V-WIFI

(14.34MB)


















User Manual of SG Series Wi-Fi Cloud Monitoring


(14.34MB)








User Manual of SG-300W-220V-WIFI
(14.34MB)

User Manual of SG Series Wi-Fi Cloud Monitoring
(14.34MB)
Title
Title
Title

Warranty

24 Months Warranty

Warranty

24 Months Warranty
300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter
300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter
300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter
300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter

SKU: SG-300W-220V-WIFI

300Watt 18-50V DC to 230V AC Solar Micro Grid Tie Inverter
€52,86
Title

Quantity:

Buy it with
2M 3*2.5mm AC power cable fit for SG series inverters
2M 3*2.5mm AC power cable fit for SG series inverters

2M 3*2.5mm AC power cable fit for SG series inverters
€10,90

Product Attachments


























User Manual of SG-300W-220V-WIFI


(14.34MB)
































User Manual of of SG Series Wi-Fi Cloud Monitoring


(14.34MB)




User Manual of MPS-MAX10.2K-48V-M180A

(14.34MB)

User Manual of MPS-MAX10.2K-48V-M180A

(14.34MB)

——   01

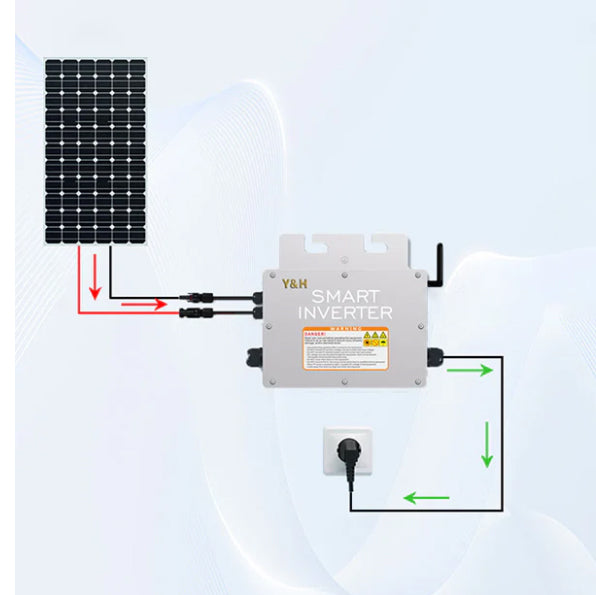

Save on Bills with Our Micro Grid-Tied Inverter

A micro grid-tied inverter efficiently converts DC power from solar panels into AC power for your home. By connecting it to your solar setup and plugging it into your outlets, you can supply power directly to your appliances, reduce your electricity costs, and start saving today. The inverter allows excess energy to be exported to the grid while automatically shutting down during grid failures for safety. Once the grid is restored, it resumes supplying power and exporting surplus energy. If the solar output is insufficient, the inverter supplements the deficit with power from the grid, ensuring a seamless energy experience.





——   02

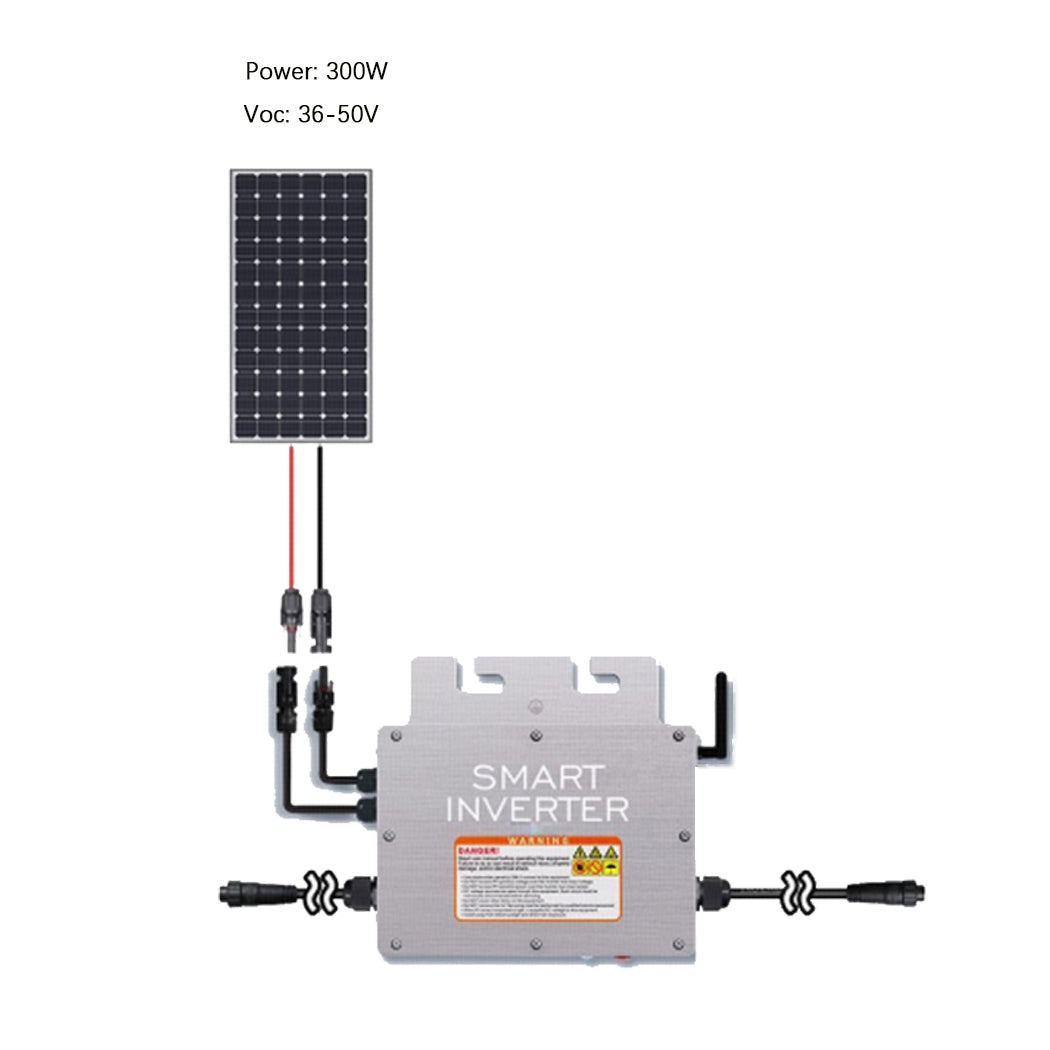

How to Choose Panel Voltage and Power

The panel power should not exceed 300W, with an open-circuit voltage (Voc) ranging from 36V to 50V, ideally between 40V and 46V for optimal performance.

——   03

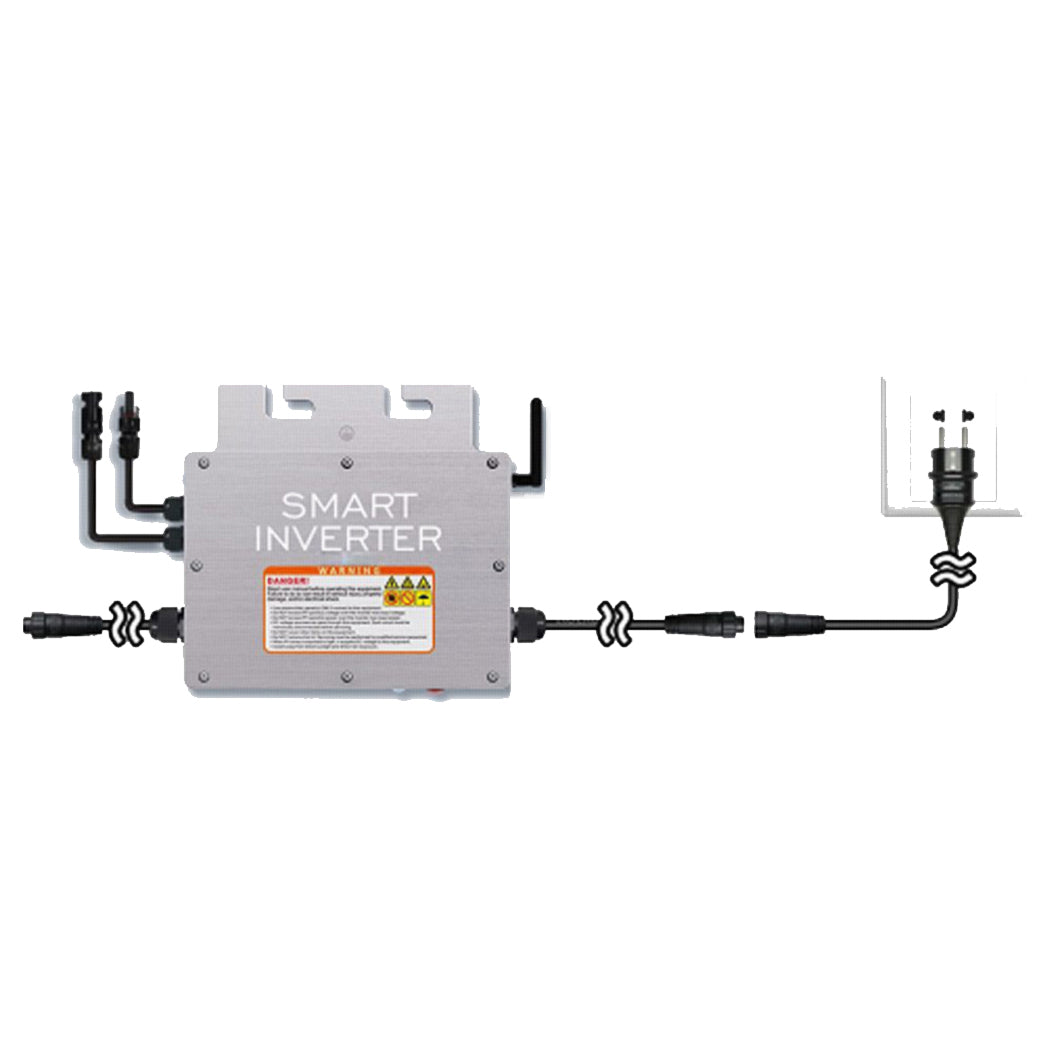

How to Connect SG AC Output to the Grid

Connect the AC output to the grid using L, N, and G. For the installation of single micro inverter, you can cut off the left/right connector, alternatively consider purchasing a extrafe/male connector/extension cable (pair with left/right connector) at extra cost. We recommend using a circuit breaker for safety, so please follow the instructions in the manual.








——   04

Installation Environment

The inverter has an IP65 waterproof rating, meaning it is resistant to water but not entirely waterproof. It can be installed outdoors, preferably on the back of the panel.





















——   05

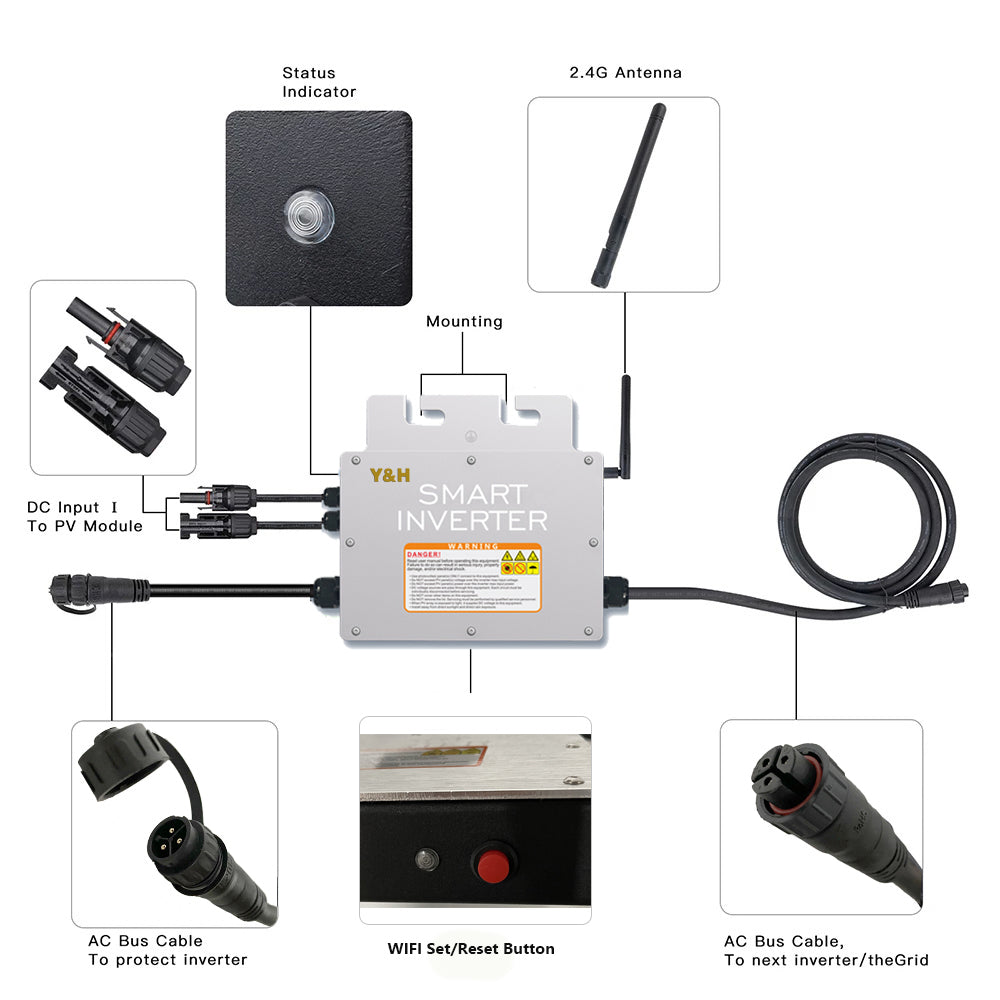

Basic structure

Inverters naturally generate heat during operation, a common trait of all electronic devices. Made from aluminum alloy, our inverters effectively dissipate this heat. They are equipped with over-temperature protection, which automatically reduces output efficiency or halts operation if temperatures exceed safe levels, ensuring the unit can cool down before restarting. Additionally, our inverters feature an LED status indicator to provide real-time feedback on operation. The use of MC4 connectors guarantees secure and efficient connections.





















——   06

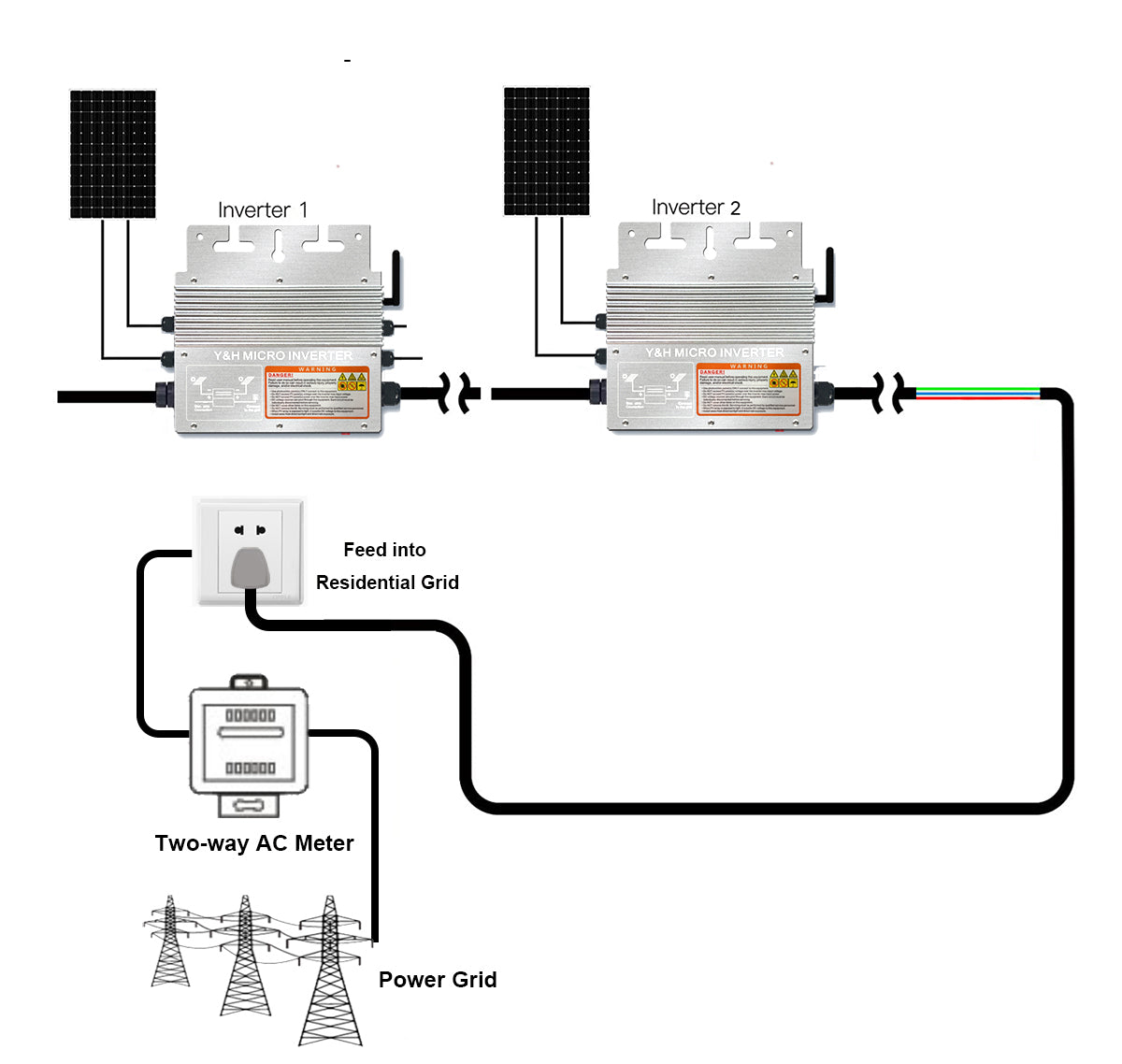

Stackable Connection

This feature allows a small solar grid-tie inverter to become a high-power inverter. To meet higher energy consumption needs, this product can be stacked. For example, stacking four 300W grid-tie inverters will yield a total output of 1800W, with no limit on the number of inverters that can be stacked.





















——   07

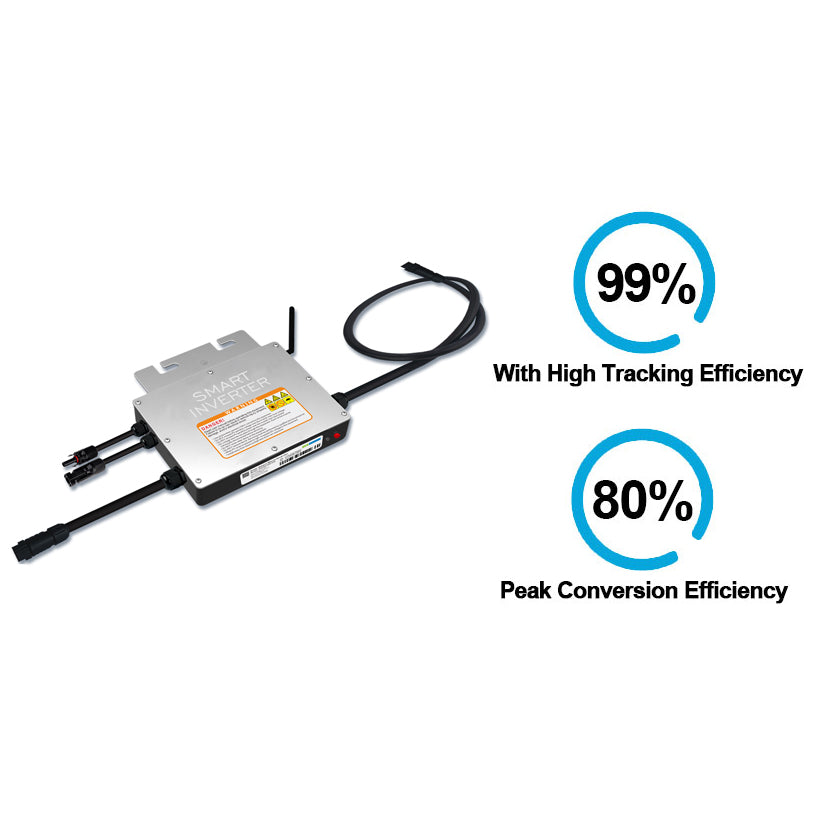

MPPT Technology

With MPPT technology, it achieves efficiency levels exceeding 99% and boasts a peak conversion rate of 80%. This is particularly significant, considering that solar panels typically operate at around 80% efficiency.



















——   08

Mobile Communication

The second-generation SG micro-inverter comes with a WiFi version, allowing you to monitor data directly on your smartphone using an app. This system enhances safety, maximizes solar energy harvest, and simplifies installation and management.



















——   09

Advanced Pure Sine Wave Inverter

The advanced pure sine wave inverter utilizes cutting-edge technology to deliver clean and reliable power, effectively safeguarding your electronics and extending the lifespan of your home appliances.



















——   10

Safe Installation and Comprehensive Protection

Micro inverters operate within a safe voltage range, allowing users to install them independently without the need for professional training or electricians. With VDE and CE certifications, these devices ensure safety while offering comprehensive protection features, including islanding protection, voltage protection, frequency protection, temperature protection, and power protection.



















——   01

Save on Bills with Our Micro Grid-Tied Inverter

A micro grid-tied inverter efficiently converts DC power from solar panels into AC power for your home. By connecting it to your solar setup and plugging it into your outlets, you can supply power directly to your appliances, reduce your electricity costs, and start saving today. The inverter allows excess energy to be exported to the grid while automatically shutting down during grid failures for safety. Once the grid is restored, it resumes supplying power and exporting surplus energy. If the solar output is insufficient, the inverter supplements the deficit with power from the grid, ensuring a seamless energy experience.







——   02

How to Choose Panel Voltage and Power

The panel power should not exceed 300W, with an open-circuit voltage (Voc) ranging from 36V to 50V, ideally between 40V and 46V for optimal performance.

——   03

How to Connect SG AC Output to the Grid

Connect the AC output to the grid using L, N, and G. For the installation of single micro inverter, you can cut off the left/right connector, alternatively consider purchasing a extrafe/male connector/extension cable (pair with left/right connector) at extra cost. We recommend using a circuit breaker for safety, so please follow the instructions in the manual.







——   04

Installation Environment

The inverter has an IP65 waterproof rating, meaning it is resistant to water but not entirely waterproof. It can be installed outdoors, preferably on the back of the panel.













——   05

Basic structure

Inverters naturally generate heat during operation, a common trait of all electronic devices. Made from aluminum alloy, our inverters effectively dissipate this heat. They are equipped with over-temperature protection, which automatically reduces output efficiency or halts operation if temperatures exceed safe levels, ensuring the unit can cool down before restarting. Additionally, our inverters feature an LED status indicator to provide real-time feedback on operation. The use of MC4 connectors guarantees secure and efficient connections.















——   06

Stackable Connection

This feature allows a small solar grid-tie inverter to become a high-power inverter. To meet higher energy consumption needs, this product can be stacked. For example, stacking four 300W grid-tie inverters will yield a total output of 1800W, with no limit on the number of inverters that can be stacked.















——   07

MPPT Technology

With MPPT technology, it achieves efficiency levels exceeding 99% and boasts a peak conversion rate of 80%. This is particularly significant, considering that solar panels typically operate at around 80% efficiency.













——   08

Mobile Communication

The second-generation SG micro-inverter comes with a WiFi version, allowing you to monitor data directly on your smartphone using an app. This system enhances safety, maximizes solar energy harvest, and simplifies installation and management.













——   09

Advanced Pure Sine Wave Inverter

The advanced pure sine wave inverter utilizes cutting-edge technology to deliver clean and reliable power, effectively safeguarding your electronics and extending the lifespan of your home appliances.













——   10

Safe Installation and Comprehensive Protection

Micro inverters operate within a safe voltage range, allowing users to install them independently without the need for professional training or electricians. With VDE and CE certifications, these devices ensure safety while offering comprehensive protection features, including islanding protection, voltage protection, frequency protection, temperature protection, and power protection.










Title

Warranty

2 Months Warranty

Warranty

12 Months Warranty

Warranty

12 Months Warranty
Title
Title

一一   01

Save on Bills with Our Micro Grid-Tied Inverter

A micro grid-tied inverter efficiently converts DC power from solar panels into AC power for your home. By connecting it to your solar setup and plugging it into your outlets, you can supply power directly to your appliances, reduce your electricity costs, and start saving today. The inverter allows excess energy to be exported to the grid while automatically shutting down during grid failures for safety. Once the grid is restored, it resumes supplying power and exporting surplus energy. If the solar output is insufficient, the inverter supplements the deficit with power from the grid, ensuring a seamless energy experience.

一一   02

How to Choose Panel Voltage and Power

The panel power should not exceed 300W, with an open-circuit voltage (Voc) ranging from 36V to 50V, ideally between 40V and 46V for optimal performance.

一一   03

How to Connect SG AC Output to the Grid

Connect the AC output to the grid using L, N, and G. For the installation of single micro inverter, you can cut off the left/right connector, alternatively consider purchasing a extrafe/male connector/extension cable (pair with left/right connector) at extra cost. We recommend using a circuit breaker for safety, so please follow the instructions in the manual.

一一   04

Installation Environment

The inverter has an IP65 waterproof rating, meaning it is resistant to water but not entirely waterproof. It can be installed outdoors, preferably on the back of the panel.

一一   05

Basic structure

Inverters naturally generate heat during operation, a common trait of all electronic devices. Made from aluminum alloy, our inverters effectively dissipate this heat. They are equipped with over-temperature protection, which automatically reduces output efficiency or halts operation if temperatures exceed safe levels, ensuring the unit can cool down before restarting. Additionally, our inverters feature an LED status indicator to provide real-time feedback on operation. The use of MC4 connectors guarantees secure and efficient connections.



一一   06

Stackable Connection

This feature allows a small solar grid-tie inverter to become a high-power inverter. To meet higher energy consumption needs, this product can be stacked. For example, stacking four 300W grid-tie inverters will yield a total output of 1800W, with no limit on the number of inverters that can be stacked.

一一   07

MPPT Technology

With MPPT technology, it achieves efficiency levels exceeding 99% and boasts a peak conversion rate of 80%. This is particularly significant, considering that solar panels typically operate at around 80% efficiency.

一一   08

Mobile Communication

The second-generation SG micro-inverter comes with a WiFi version, allowing you to monitor data directly on your smartphone using an app. This system enhances safety, maximizes solar energy harvest, and simplifies installation and management.

一一   09

Advanced Pure Sine Wave Inverter

The advanced pure sine wave inverter utilizes cutting-edge technology to deliver clean and reliable power, effectively safeguarding your electronics and extending the lifespan of your home appliances.

一一   10

Safe Installation and Comprehensive Protection

Micro inverters operate within a safe voltage range, allowing users to install them independently without the need for professional training or electricians. With VDE and CE certifications, these devices ensure safety while offering comprehensive protection features, including islanding protection, voltage protection, frequency protection, temperature protection, and power protection.

Y&H Inverter Specifications

Important Notice:
Please Read Product Manual Before Buying. Detailed specifications and features provided. Contact our support team for assistance. Thank you for choosing us.

Model

SG-300W-220V-WIFI

Rated Load Power

300W

Ac Out Put

110V/220V

DC Out Put

18V-50V

Max Solar Panel Input Power

300W

Applicable Solar Panel Voltage

36V-50V

Battery Voltage (must use a circuit breaker)

Not compatible with battery connections

MPPT Effeciency

99%

AC Stacking Connection

Yes

LCD Display

No

Limiter (CT)

Yes

Waterproof Design

IP65

Y&H Inverter Specifications

Important Notice:

Please Read Product Manual Before Buying. Detailed specifications and features provided. Contact our support team for assistance. Thank you for choosing us.

Model

SG-300W-220V-WIFI

Rated Load Power

300W

Ac Out Put

110V/220V

DC Out Put

18V-50V

Max Solar Panel Input Power

300W

Applicable Solar Panel Voltage

36V-50V

Battery Voltage (must use a circuit breaker)

Not compatible with battery connections

MPPT Effeciency

99%

AC Stacking Connection

Yes

LCD Display

No

Limiter (CT)

Yes

Waterproof Design

IP65
