Why we produced the GRID TIE INVERTER WITH LIMITER ?
It is in response to the overwhelming clamor from our customers for a product that can control the amount of power that the grid tie inverters (GTI) can generate so that the amount of excess power produced by the solar panels are reduced to insignificant levels, if not eliminated --- because in some countries,the producer pays for the excess power it gives to the distribution grid. This is because the electric power meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. In other words it only adds even if power is exported to the grid, thus, the consumers will be charged for power even if it is given to the grid, and this is the problem
This is the 2nd generation grid tie inverter with limiter.

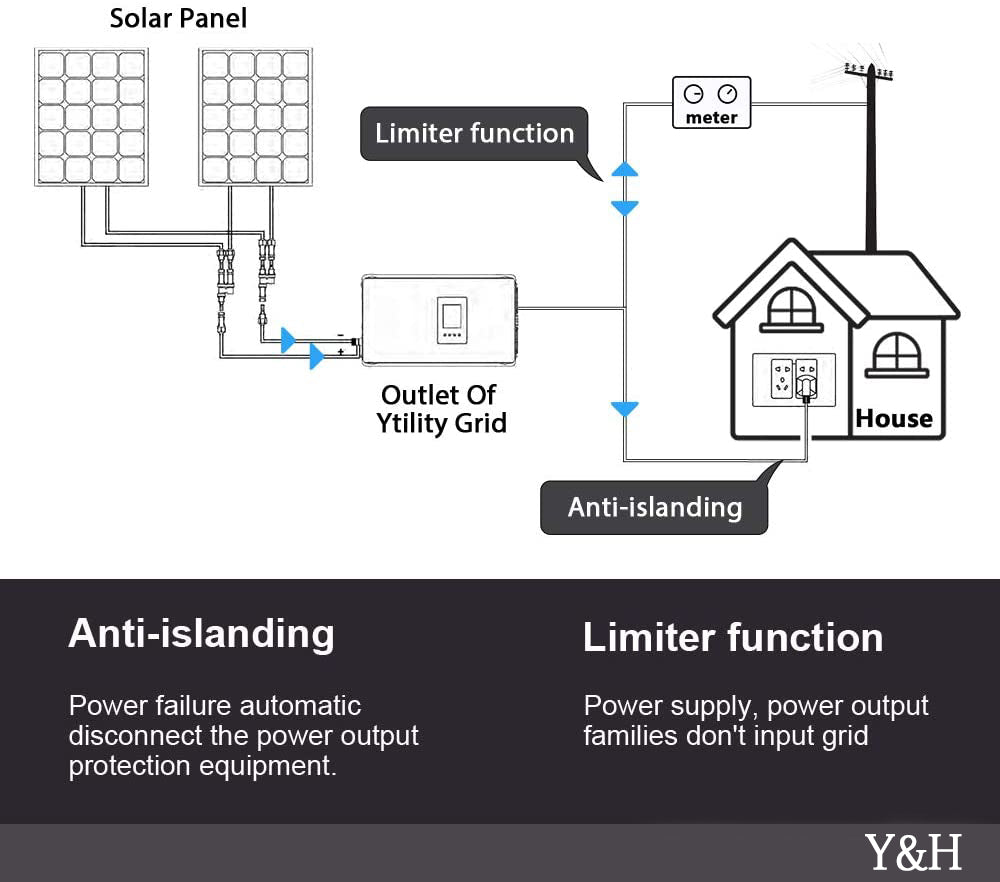

With the 2nd generation GTIL,we integrated the limit function inside the GTI-We call this internal limiter.In this way,No additional limiter module is needed,reduced customerrsquos cost,more easier for installation.But in case customer install inverter far away from the main circuit breaker,we also enable the 2nd GTIL work with stand-alone limiter,we call this-external limiter.For sure,the inverter can work under normal Grid tie-no limit mode,just set on the nice LCD and save your setting.
New upgraded firmware enable battery or solar limiter current and power model.
User can set the maximum output power of inverter , this can make the inverter work at cooler contition as user want and extend the lifespan of the inverter .
User can set kick in/off voltage of the inverter which can flexible using with battery bank depend on users mind and can prevent battery bank from over discharged .

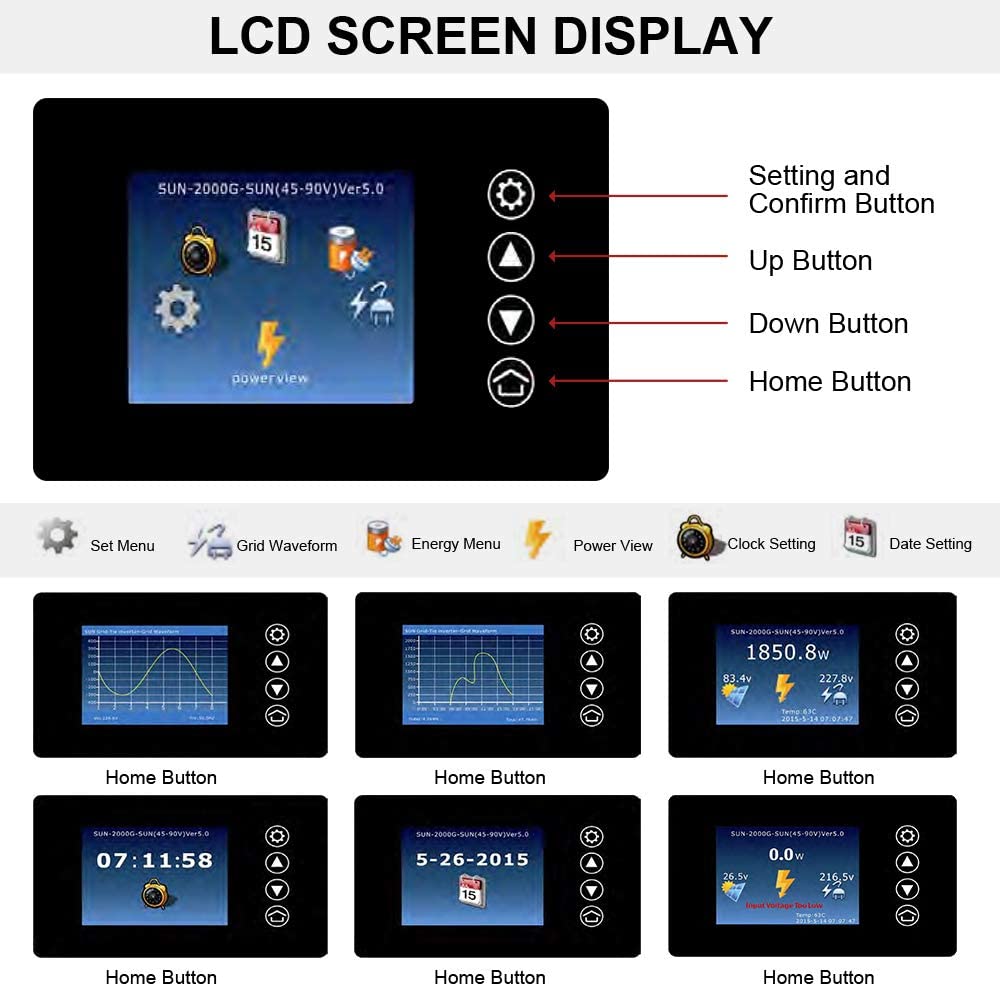

【Using batteries to power the inverter allows for discharge during peak periods through a timed discharge function. Enables lower peak loads and therefore lower electricity bills.】Grid tie inverter with limiter sensor. Delivers only the power required by the load. Large LCD display, all adjustable parameters.
It can be used as a separate net tying system and set up with many of them as a large solar system. （AC Stackable）
Improving the efficiency of the whole solar power system - Due to the MPPT function. So each panel works to the maximum.
Low power consumption, over-current protection, over-temperature protection, island protection, reverse polarity protection, etc.
Specification:

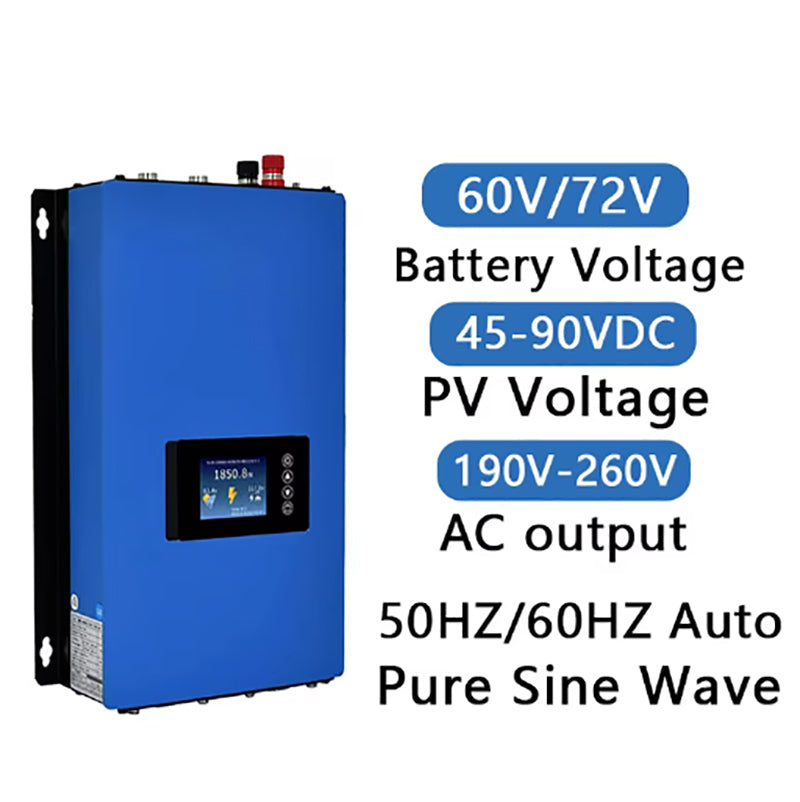

Model: SUN-2000GTIL2-H
Rated Power (Peak/Continuous): 1950W / 2000W

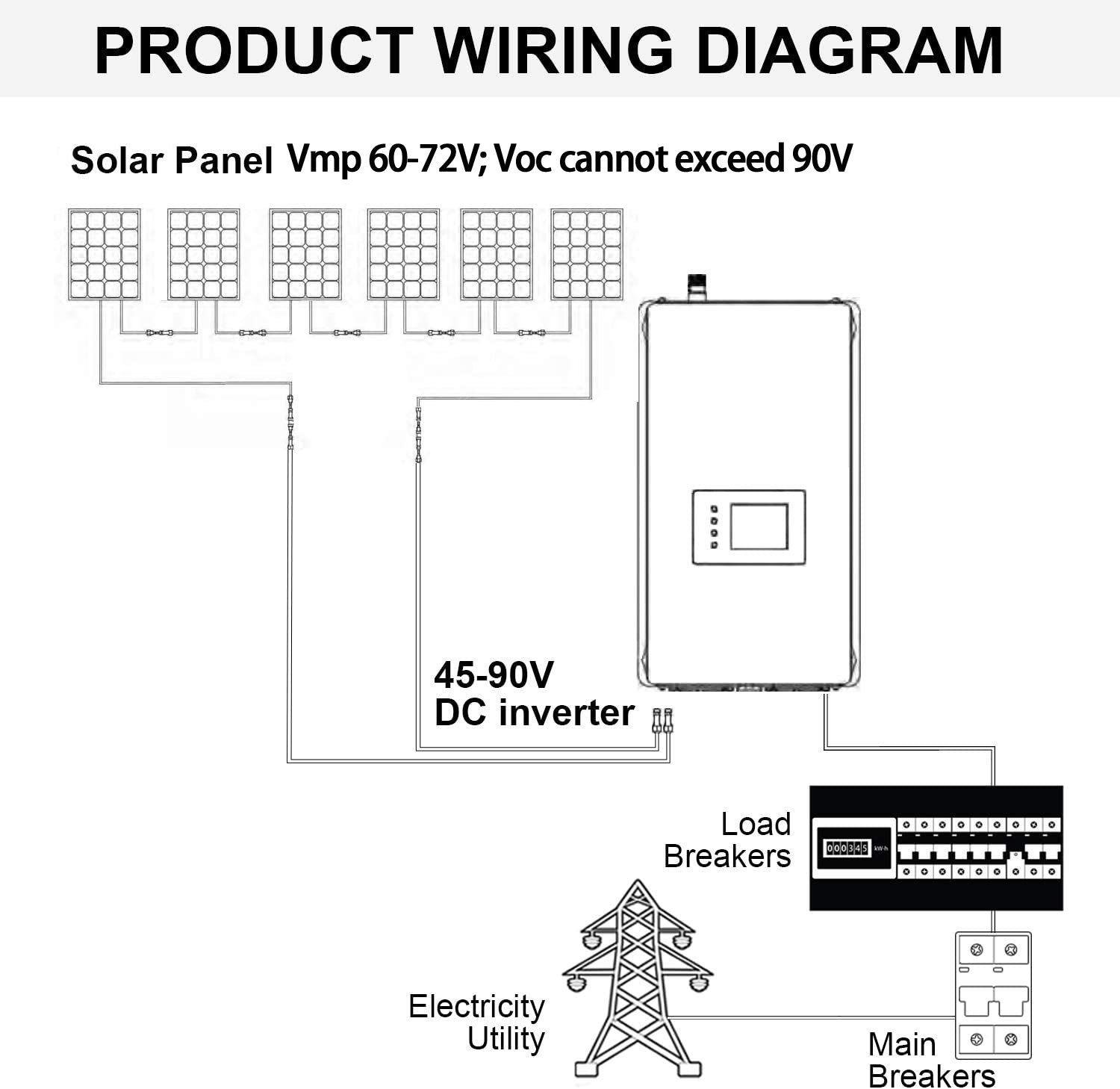

DC Input Voltage: 45V~90V
AC Output Voltage Range: 190V~260V
Peak power tracking voltage: 50~90V
AC Output Frequency Range: 46Hz~65Hz
Peak Inverter Efficiency: 92%
Stackable: Just for AC Output
Output Wareform: Pure sine wave
Package:
1XSolar Grid Inverter with Limiter
1XAC cable
1XInternal type Limiter clamp with sensor & 2m cable
1XEnglish User Manual
