Description
The second-generation SG micro-inverter adds mobile phone communication function, Let you monitor the working status of your inverter anytime and anywhere.This Smart On Grid system improves safety; maximizes solar energy harvest; increases system reliability, and simplifies solar system design, installation, maintenance , and management.
Feature:
1. Produce green and non-polluting energy. Reduce electricity costs
2. Single-phase output, Flexible 3-phase PV systems
3. WIFI With Cloud Monitoring

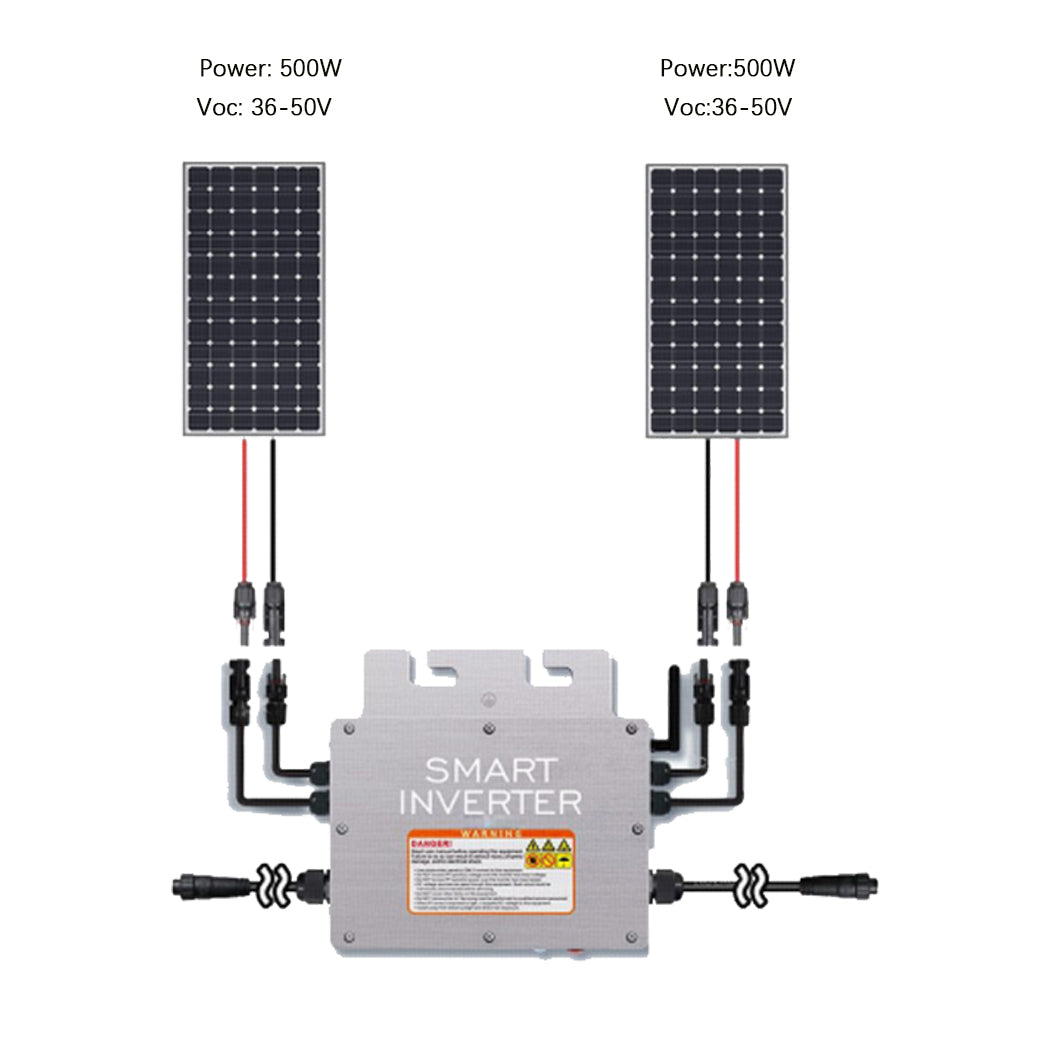

4. Multiple units combined into a large solar system
5. Maximum output power up to 1000W; Adapted to 60 & 72 cells PV panels
6. Maximum 400W input per branch
7. Integrated AC bus cable, Ready-To-Use
8. On Grid inverter Low cost, Easy installation and reduced maintenance costs
Parameter:
Model: SG-1000W-WIFI
MPPT maximum power tracking voltage range: 28V-55V
Operating voltage range: 20V-60V
Maximum branch input voltage: 60V
Starting voltage: 20V
Maximum DC input power: 2 * 500W
Maximum DC input current: 2 * 16.66A
Rated output power: 950W
Maximum output power: 1000W
Regarding the heating problem of the inverter:
this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.
Feature:
1. Produce green and non-polluting energy. Reduce electricity costs
2. Single-phase output, Flexible 3-phase PV systems
3. WIFI With Cloud Monitoring
4. Multiple units combined into a large solar system
5. Maximum output power up to 1000W; Adapted to 60 & 72 cells PV panels
6. Maximum 400W input per branch
7. Integrated AC bus cable, Ready-To-Use
8. On Grid inverter Low cost, Easy installation and reduced maintenance costs
Parameter:
Model: SG-1000W-WIFI
MPPT maximum power tracking voltage range: 28V-55V
Operating voltage range: 20V-60V
Maximum branch input voltage: 60V
Starting voltage: 20V
Maximum DC input power: 2 * 500W
Maximum DC input current: 2 * 16.66A
Rated output power: 950W
Maximum output power: 1000W
Regarding the heating problem of the inverter:
this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.
![Y&H 1000W Grid Tie Micro Inverter with WIFI Communication Waterproof MPPT Stackable AC110V/220V Auto Pure Sine Wave Output](http://www.yonghuisolar.com/cdn/shop/files/1_62d8b6ee-a751-48e6-9522-54da388d65d8.jpg?v=1691807228&width=1)

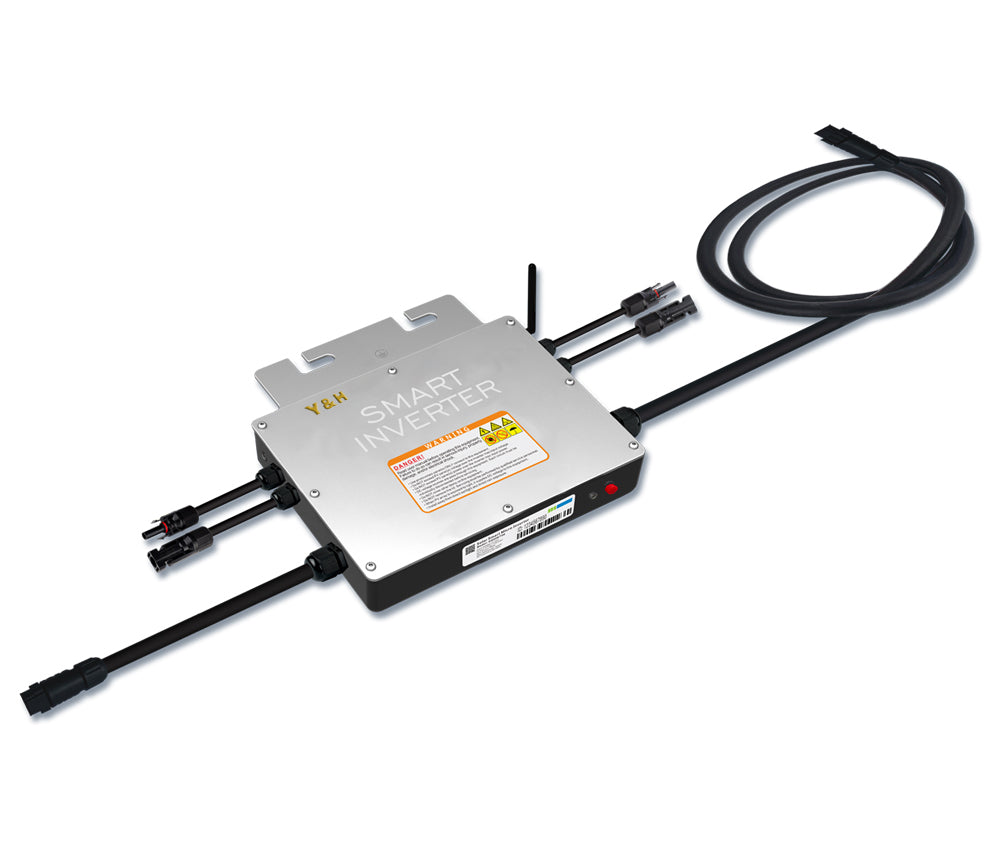

Y&H 1000W Grid Tie Micro Inverter with WIFI Communication Waterproof MPPT Stackable AC110V/220V Auto Pure Sine Wave Output
