Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA

SKU: GTI-1000W-18V-220V-S

SKU: MPS-MAX 10.2KW-48V-M180A

Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA

Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
€80,86

289 Reviews!
€80,86
Title
Title

Quantity:

Quantity:

SKU: MPS-MAX 10.2KW-48V-M180A

SKU: GTI-1000W-18V-220V-S

Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA

Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA

289 Reviews!
€80,86
€80,86
Title
Title

Quantity:

Quantity:

Product Attachments

Product Attachments


























User Manual of GTI-1000W-18V-220V-S

(14.34MB)





























User Manual of GTI-1000W-18V-220V-S
(14.34MB)
Title
Title
Title

Warranty

24 Months Warranty

Warranty

24 Months Warranty
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA
Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA

SKU: GTI-1000W-18V-220V-S

Inversor de conexión a red de 1000 W, 18 V CC a 220 V CA

€80,86
Title

Quantity:

Product Attachments






















User Manual of GTI-1000W-18V-220V-S


(14.34MB)






















User Manual of MPS-MAX10.2K-48V-M180A

(14.34MB)

User Manual of MPS-MAX10.2K-48V-M180A

(14.34MB)

——   01

DIY Solar System, Reduce your electricity bill

The GTI series is the most basic model of grid-tied inverters and is designed for indoor installation. Its primary function is to convert DC (Direct Current) to AC (Alternating Current) and feed the generated electricity back into the grid, helping to reduce electricity bills. Additionally, an external display can be connected to monitor the inverter's AC output data in real-time. Please be Noted:The output need to be connected to the grid power, can not supply power directly to the AC loads.









——   02

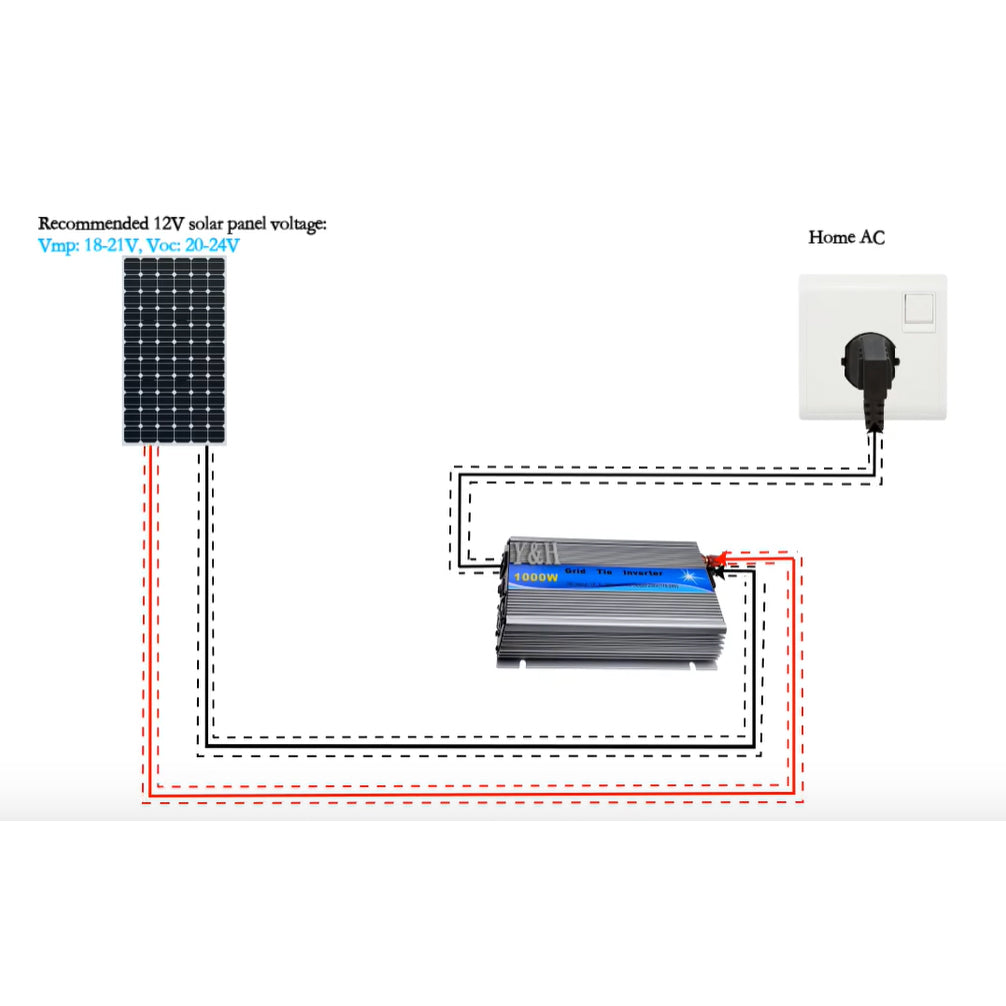

Inverter work with solar panels

The 10.8-30VDC input range is compatible with 36cells-Vmp:18-21V:Voc:20-24V solar panels. These panels should provide a minimum of 200W and can support up to a maximum of 1100W of power.

——   03

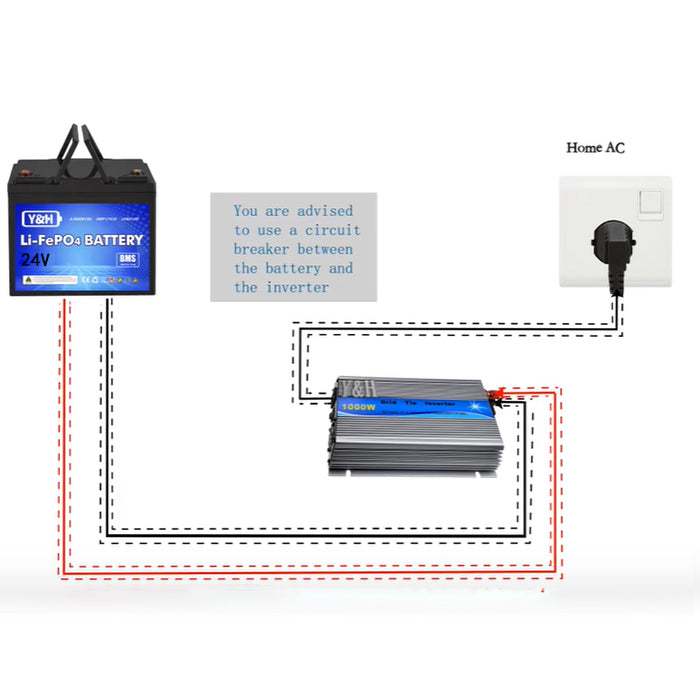

Inverter work with battery

If you want to use this grid tie inverter for battery, then please use 24VDC battery with 10.8-30VDC inverter.
Because this inverter is designed for solar panels which with MPPT function. So we don't very suggest customers to use it for battery. It may short the inverter service life.If use a battery to power the inverter, please use a circuit breaker.








——   04

Stackable connection

In order to achieve higher power use requirements, the use of this product can be stacked, such as: 4 grid tie inverter 1000W of stack used is equal to 4000W, and the number of open stacks (No Quantitative Restrictions).



















——   05

MPPT technology

Creative MPPT tech makes efficiency higher than 99%. Peak conversion 80%. Consider the conversion rate of solar panel is about 80%, for example, if you need 500W power output from the inverter, you need to connect it to a solar panel that 500 / 0.8 / 0.8 equals about 780W, (780w * 0.8 * 0.8 = 500w)



















——   06

 Fan Cooling

Intelligence Fan-on temperature >45℃ and off < 40℃. High-speed ventilation fans to help keep the inverter running at a low temperature.



















——   07

 Multiple protections

Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection.



















——   01

  DIY Solar System, Reduce your electricity bill

The GTI series is the most basic model of grid-tied inverters and is designed for indoor installation. Its primary function is to convert DC (Direct Current) to AC (Alternating Current) and feed the generated electricity back into the grid, helping to reduce electricity bills. Additionally, an external display can be connected to monitor the inverter's AC output data in real-time. Please be Noted:The output need to be connected to the grid power, can not supply power directly to the AC loads.







——   02

Inverter work with solar panels

The 10.8-30VDC input range is compatible with 36cells-Vmp:18-21V:Voc:20-24V solar panels. These panels should provide a minimum of 200W and can support up to a maximum of 1100W of power.

——   03

Inverter work with battery

If you want to use this grid tie inverter for battery, then please use 24VDC battery with 10.8-30VDC inverter.
Because this inverter is designed for solar panels which with MPPT function. So we don't very suggest customers to use it for battery. It may short the inverter service life.If use a battery to power the inverter, please use a circuit breaker.





——   04

Stackable connection

In order to achieve higher power use requirements, the use of this product can be stacked, such as: 4 grid tie inverter 1000W of stack used is equal to 4000W, and the number of open stacks (No Quantitative Restrictions).











——   05

MPPT technology

Creative MPPT tech makes efficiency higher than 99%. Peak conversion 80%. Consider the conversion rate of solar panel is about 80%, for example, if you need 500W power output from the inverter, you need to connect it to a solar panel that 500 / 0.8 / 0.8 equals about 780W, (780w * 0.8 * 0.8 = 500w)











——   06

Fan Cooling

Intelligence Fan-on temperature >45℃ and off < 40℃. High-speed ventilation fans to help keep the inverter running at a low temperature.











——   07

 Multiple protections

Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection













Title

Warranty

24 Months Warranty

Warranty

12 Months Warranty

Warranty

12 Months Warranty
Title
Title

一一   01

DIY Solar System, Reduce your electricity bill

The GTI series is the most basic model of grid-tied inverters and is designed for indoor installation. Its primary function is to convert DC (Direct Current) to AC (Alternating Current) and feed the generated electricity back into the grid, helping to reduce electricity bills. Additionally, an external display can be connected to monitor the inverter's AC output data in real-time. Please be Noted:The output need to be connected to the grid power, can not supply power directly to the AC loads.

一一   02

Inverter work with solar panels

The 10.8-30VDC input range is compatible with 36cells-Vmp:18-21V:Voc:20-24V solar panels. These panels should provide a minimum of 200W and can support up to a maximum of 1100W of power.

一一   03

Inverter work with battery

If you want to use this grid tie inverter for battery, then please use 24VDC battery with 10.8-30VDC inverter.

Because this inverter is designed for solar panels which with MPPT function. So we don't very suggest customers to use it for battery. It may short the inverter service life.If use a battery to power the inverter, please use a circuit breaker.

一一   04

Stackable connection

In order to achieve higher power use requirements, the use of this product can be stacked, such as: 4 grid tie inverter 1000W of stack used is equal to 4000W, and the number of open stacks (No Quantitative Restrictions).



一一   05

MPPT technology

Creative MPPT tech makes efficiency higher than 99%. Peak conversion 80%. Consider the conversion rate of solar panel is about 80%, for example, if you need 500W power output from the inverter, you need to connect it to a solar panel that 500 / 0.8 / 0.8 equals about 780W, (780w * 0.8 * 0.8 = 500w)

一一   06

Fan Cooling

Intelligence Fan-on temperature >45℃ and off < 40℃. High-speed ventilation fans to help keep the inverter running at a low temperature.

一一   07

Multiple protections

Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection.



Y&H Inverter Specifications

Important Notice:
Please Read Product Manual Before Buying. Detailed specifications and features provided. Contact our support team for assistance. Thank you for choosing us.

Model

GTI-1000W-18V-220V-S

Rated Load Power

1000W

Ac Out Put

190-260V

DC Out Put

10.8-30V

Max Solar Panel Input PowerMPPT Effeciency

1000W

Applicable Solar Panel Voltage

Vmp18-21V；Voc20-24V

Battery Voltage (must use a circuit breaker)

24V

MPPT Effeciency

99%

AC Stacking Connection

Yes

LCD Display

None (external display can be connected)

Communication Function

No

Limiter (CT)

No

Waterproof Design

No

Y&H Inverter Specifications

Important Notice:

Please Read Product Manual Before Buying. Detailed specifications and features provided. Contact our support team for assistance. Thank you for choosing us.

Model

GTI-1000W-18V-220V-S

Rated Load Power

1000W

Ac Out Put

190-260V

DC Out Put

10.8-30V

MPPT Effeciency

99%

Max Solar Panel Input Power

1000W

Battery Voltage (must use a circuit breaker)

24V

AC Stacking Connection

Yes

LCD Display

None (external display can be connected)

Communication Function

No

Limiter (CT)

No

Waterproof Design

No
