New upgrade in 2025: no battery start design, reducing the cost of purchasing and maintaining batteries; Support obtaining key battery information provided by BMS
-

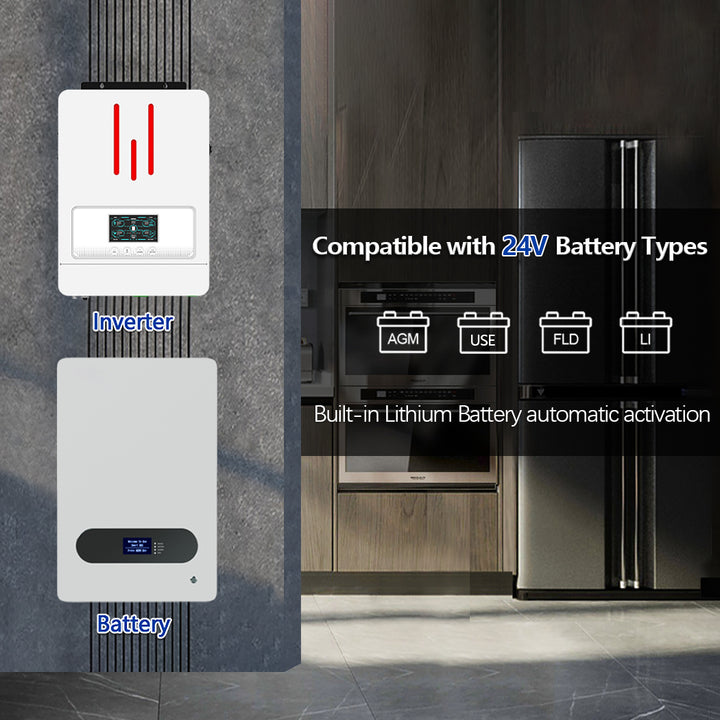

【Pure sine Wave Inverter】3200W Pure sine Wave Inverter 24V DC to AC 220/230/240V (Single phase/A Hot Leg 230V Output, Can't Output 110V AC), built in 80A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 24V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery
-

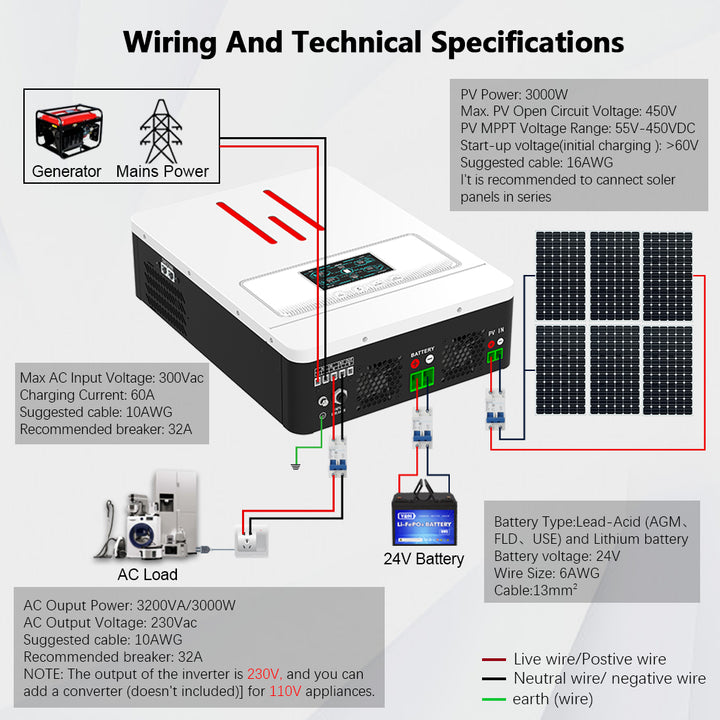

【TECHNICAL SPECIFICATIONS】3200VA Hybrid Solar Inverter Max.PV Input Power: 3000W, Voltage range: 55-450Vdc, Max. PV Input VOC: 450V DC, Starting voltage >60V;Recommended PV cable size: 16AWG, Max.charge current: 80A.Nominal Input Frequency: 50/60Hz; Output Power: 3000W, surge Capacity: 6000W.
-

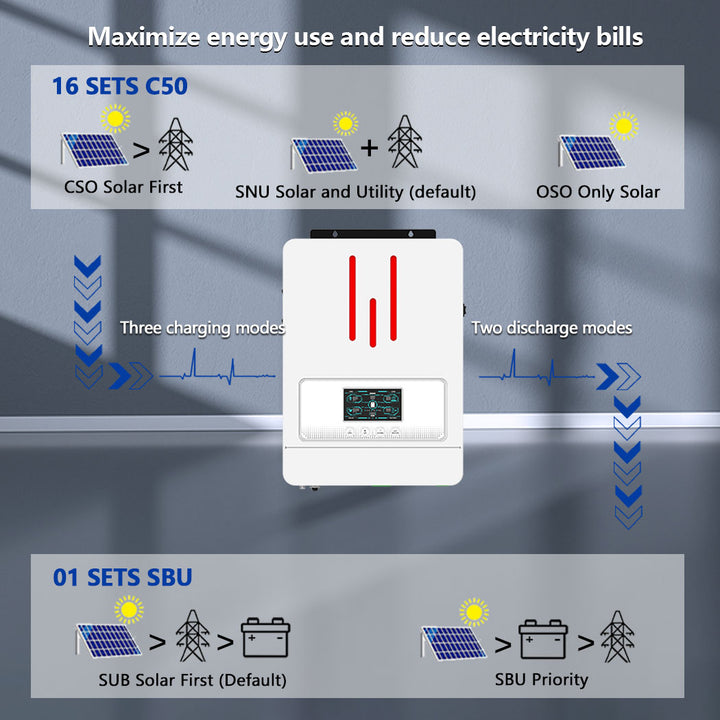

【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 3 charging modes are optional, i.e. Only Solar, Solar Frist and Mains & Solar hybrid charging;and 2 output modes are available, i.e. Solar Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
-
【Reduced Initial Investment Cost】Battery-less startup design significantly reduces system purchase cost. Battery installation, maintenance and replacement costs are eliminated. Direct utilization of photovoltaic power, suitable for daytime high energy consumption scenarios, especially in areas where solar energy resources are abundant and demand for electricity is concentrated in the daytime (it is recommended to match the grid input, which automatically switches to utility power to supplement when there is insufficient photovoltaic power generation)
-

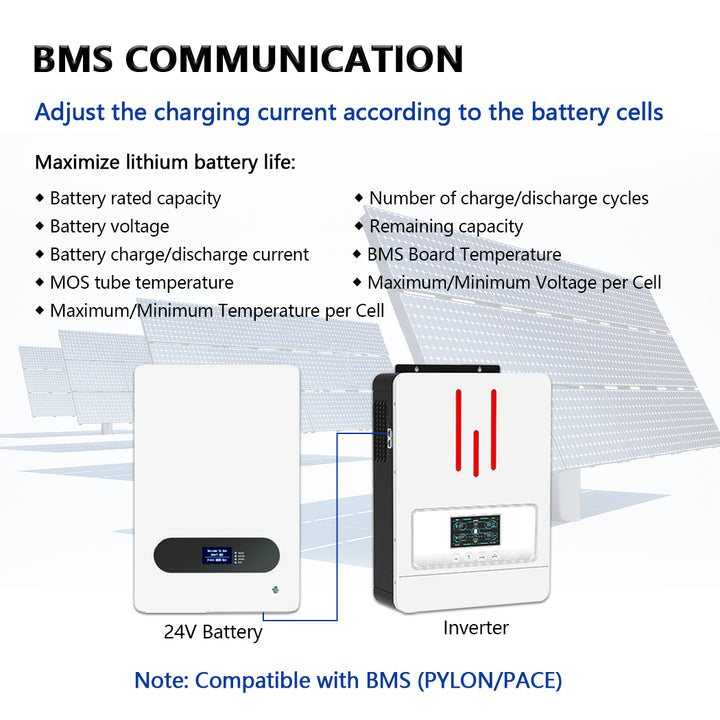

【BMS】The inverter can access key battery information (e.g. voltage, current, temperature, SOC, SOH) provided by the BMS. This helps avoid dangerous situations such as overcharging, overdischarging, overcurrent and overheating. When the BMS detects an abnormality (e.g., high battery temperature), it can send a signal to the inverter to trigger the system protection mechanism to quickly stop charging and discharging and prevent the fault from expanding.（BMS only compatible with PYLON/PACE）
This is a multi-function inverter charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.
Suitable for entry-level players as a trial system, battery-free start-up design to reduce the initial investment cost, of course, the future plans to upgrade the battery storage, which is also the best choice of inverter
Why? 24V lithium iron phosphate battery best partner
We reserved BMS communication, compared to the past, just monitor the battery parameters.
Now! The BMS can provide optimized charging and discharging current and voltage parameters to the inverter based on the current state of the battery. Precise control reduces over-stressing of the battery, thus extending its lifetime.（BMS only compatible with PYLON/PACE）
NOTE:
The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements OF The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation. If you need storage batteries or solar panels. Y&H one-stop service for you.
Features：
Pure sine wave inverter
Programmable supply priority for PV, battery or Grid
High PV input voltage range(55~450VDC)
Reduce the cost of solar panels
Battery-less startup design
Built-in Max 80A MPPT solar charge
Compatibe with lithium-ion battery
Support BMS communication with Lithium battery
Smart battery charge design to optimize battery life
Overload, high temperature,inverter output short circuit protection Intelligent fan speed adjustment
Built-in anti-dusk kit for harsh enviromen(optional)

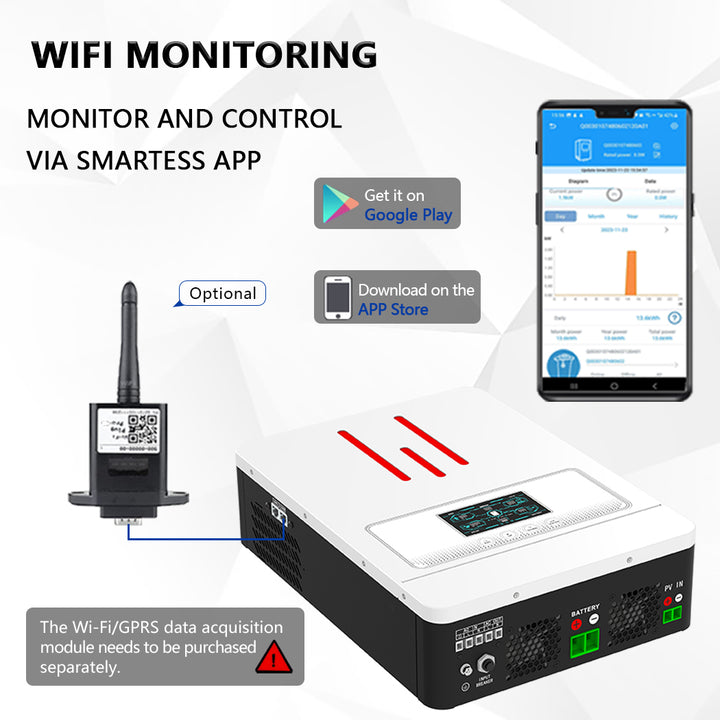

WIFI&GPRS available for IOS and androidCold start function（Not include WiFi module)
| Product Data Sheet | ||
| MODEL | RS-2200 | RS-3200 |
| Rated Power | 2200VA/1800W | 3200VA/3000W |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) |
|
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |
| Surge power | 4400VA | 6400VA |
| Transfer Time | 10ms (for personal computers) 20ms (for home appliances) |
|
| Wave form | Pure Sine Wave | |
| TWO LOAD OUTPUT POWER | ||
| Full Load | 1800W | 3000W |
| Maximum Main Load | - | - |
| Maximum EPS Load ( Battery mode ) | - | - |
| Main Load Cut Off Voltage | - | - |
| Main Load Return Voltage | - | - |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 15.5VDC | 31VDC |
| Maximum charge current | 60A | |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 2000W | 3000W |
| MPPT Range@ Operating Voltage | 55-450VDC | |
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum Charging Current | 80A | |
| Maximum Efciency | 98% | |
| PHYSICAL | ||
| Dimension.D*W*H(mm) | 405*286*98mm | |
| Net Weight (kgs) | 5KG | 5.5KG |

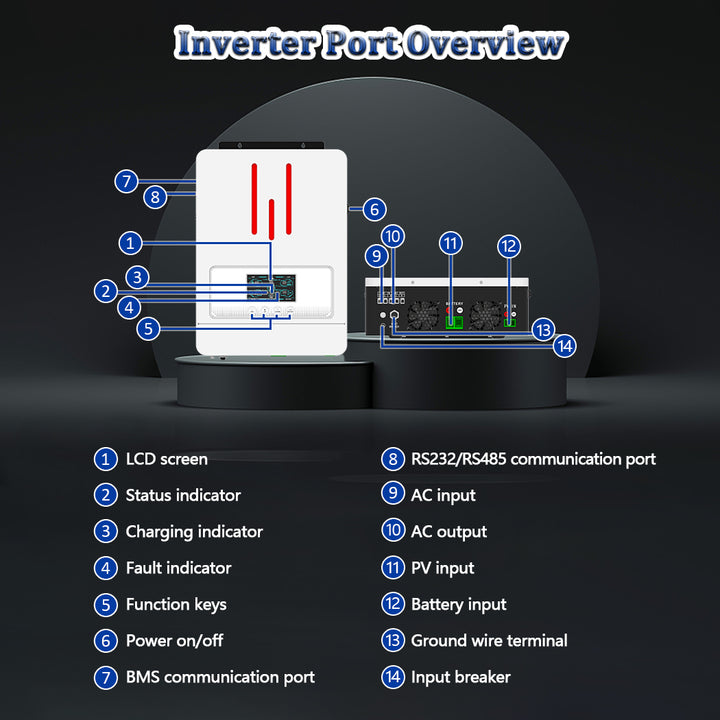

| Communication interface | Two communincation ports ,One RS485 port for BMS , Another Rs485/RS232 for remote monitoring |
|
| OPERATING ENVIRONMENT | ||
| Humidity | 5%6 to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10℃ to 55℃ | |
| Storage Temperature | -15℃ to 60℃ | |
