As the inverter works to convert DC power to AC power, it generates heat. This heat is added to the ambient temperature of the inverter enclosure, and the inverter dissipates the heat through fans and / or heat sinks. The heat rises above a certain level at which the material in the inverter will begin to degrade. Insulation will become brittle, solder can expand and crack and metal components in capacitors can fatigue.

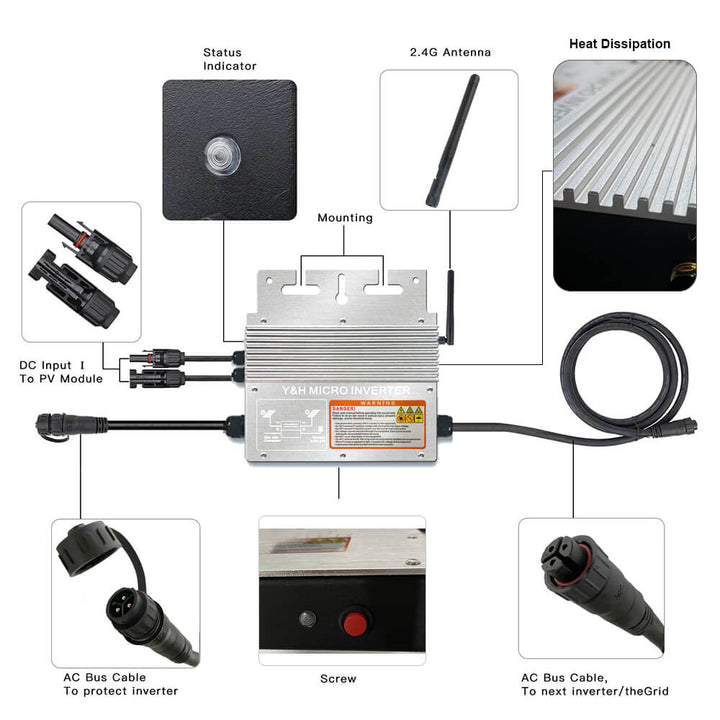

The 3rd generation SG-600W uses an aluminium alloy casing for better heat dissipation. The design gears also allow the panel to come into contact with as much air as possible, physically cooling it down through the rapid flow of air.

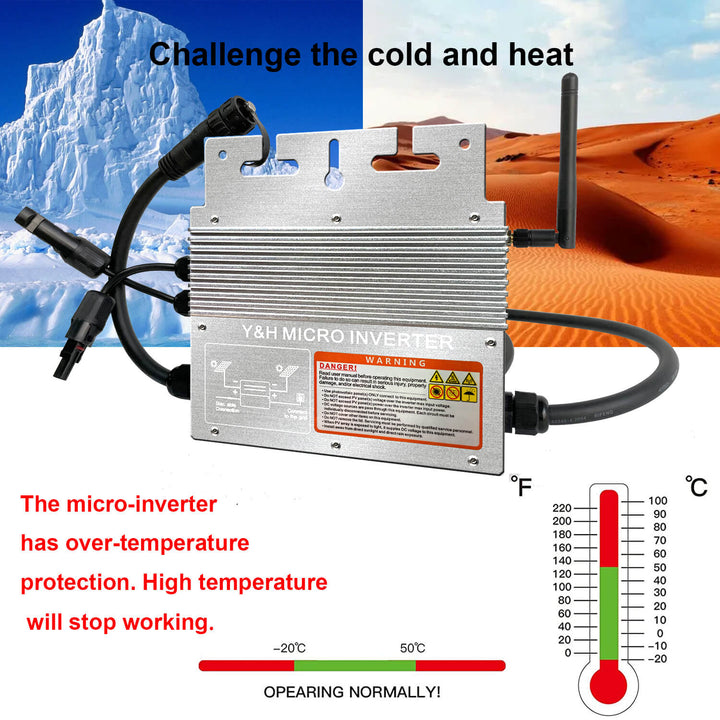

In order to keep the heat low, the inverter will stop generating power or reduce the amount of power it generates by “derating” as it passes programmed temperature milestones or you can state this as ramp down of power.

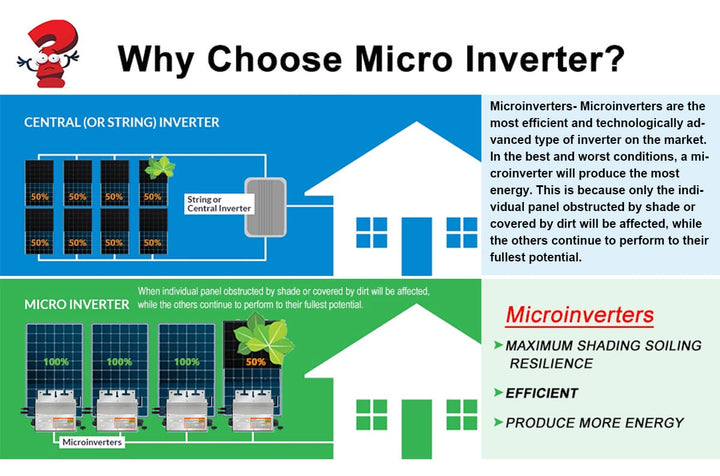

Why Choose Y&H Micro Inverter?

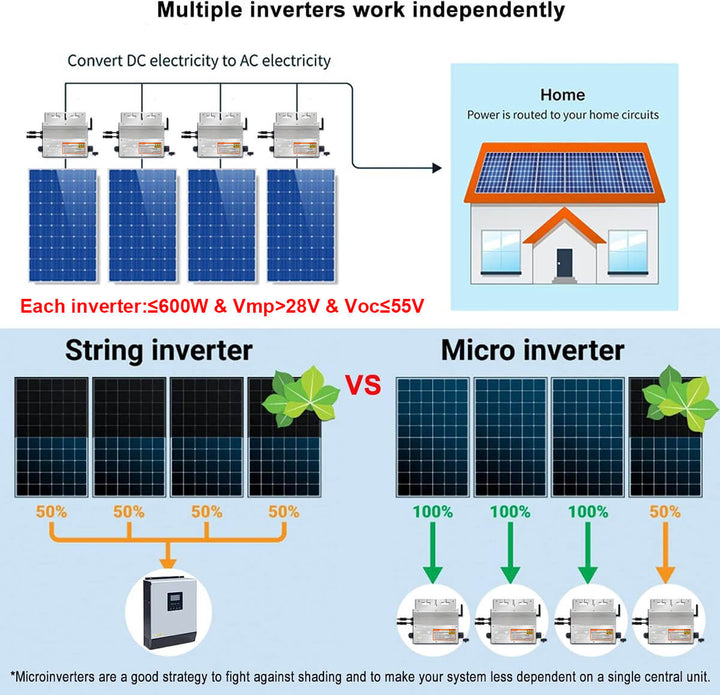

Microinverters- Microinverters are the most efficient and technologically advanced type of inverter on the market. In the best and worst conditions, a microinverter will produce the most energy. This is because only the individual panel obstructed by shade or covered by dirt will be affected, while the others continue to perform to their fullest potential.
Feature:
Produce green and non-polluting energy. Reduce electricity costs

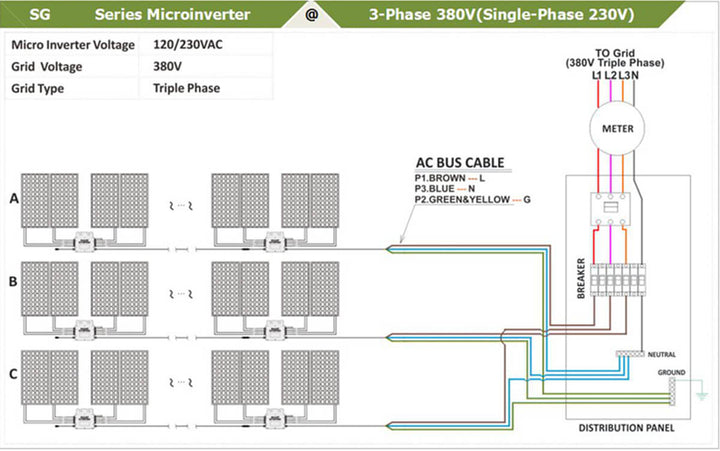

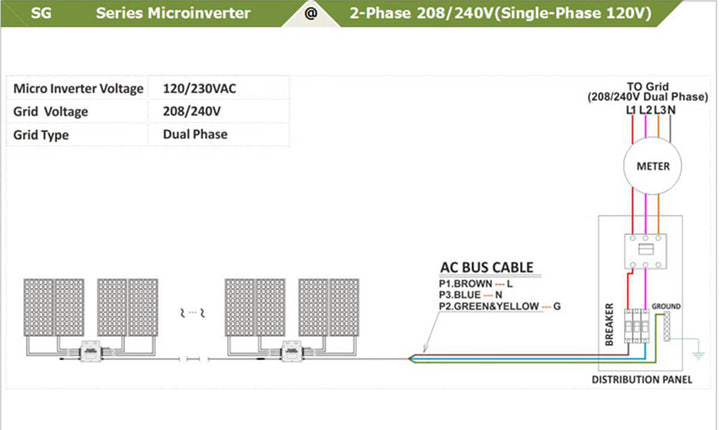

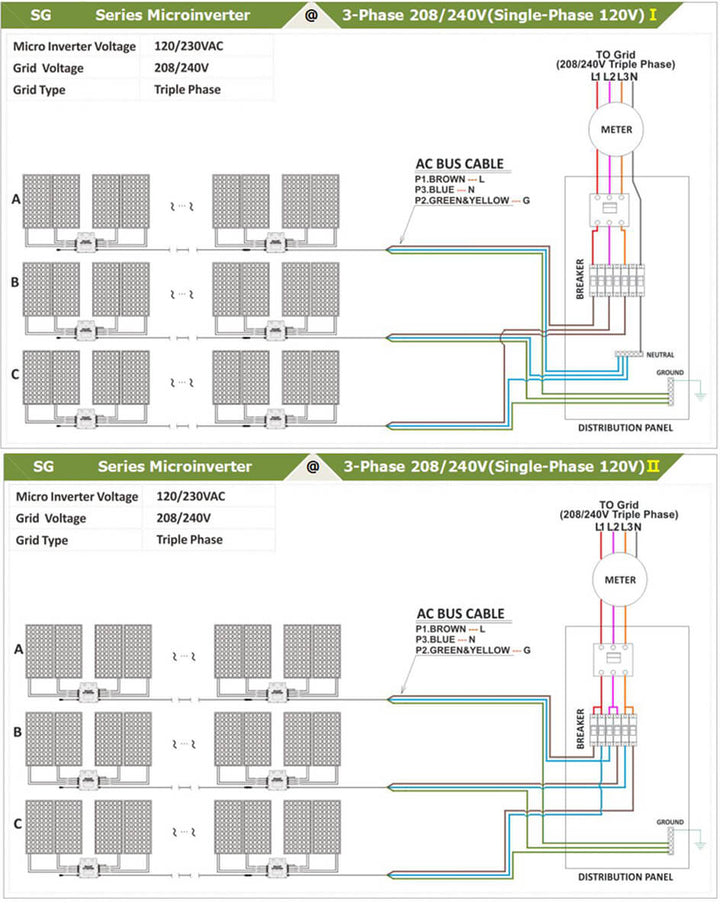

Single-phase output, Flexible 3-phase PV systems
WIFI With Cloud Monitoring

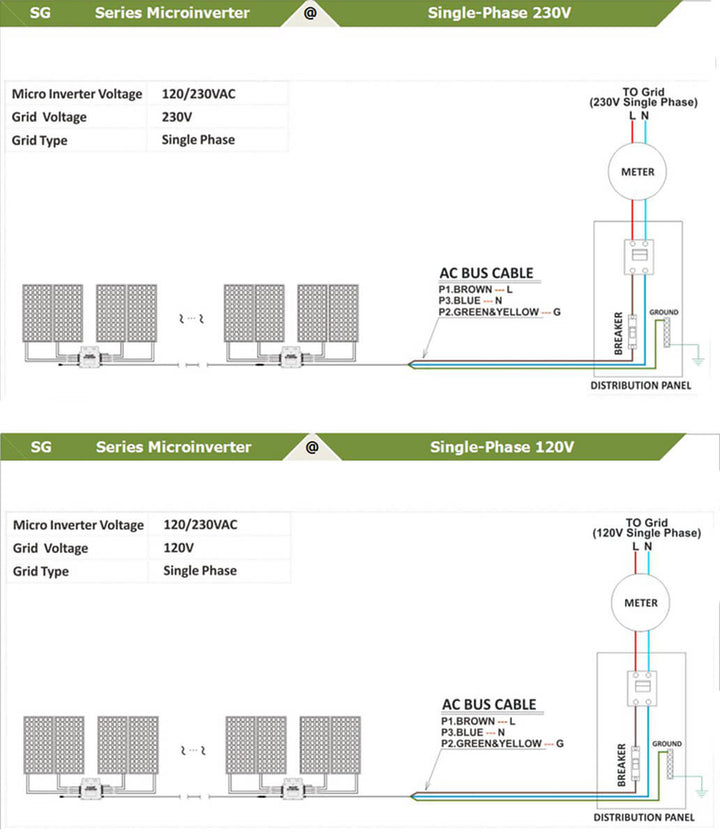

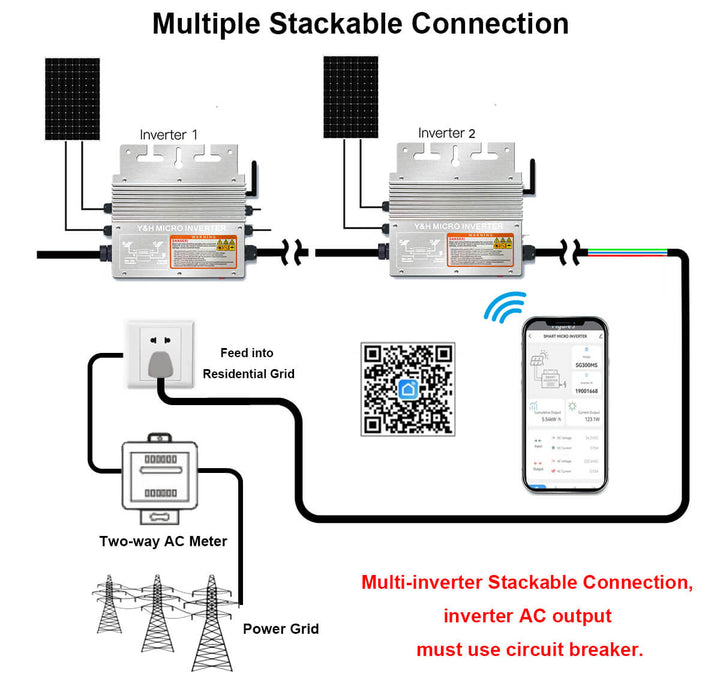

Multiple units combined into a large solar system
Maximum output power up to 590W; Adapted to 60 & 72 cells PV panels

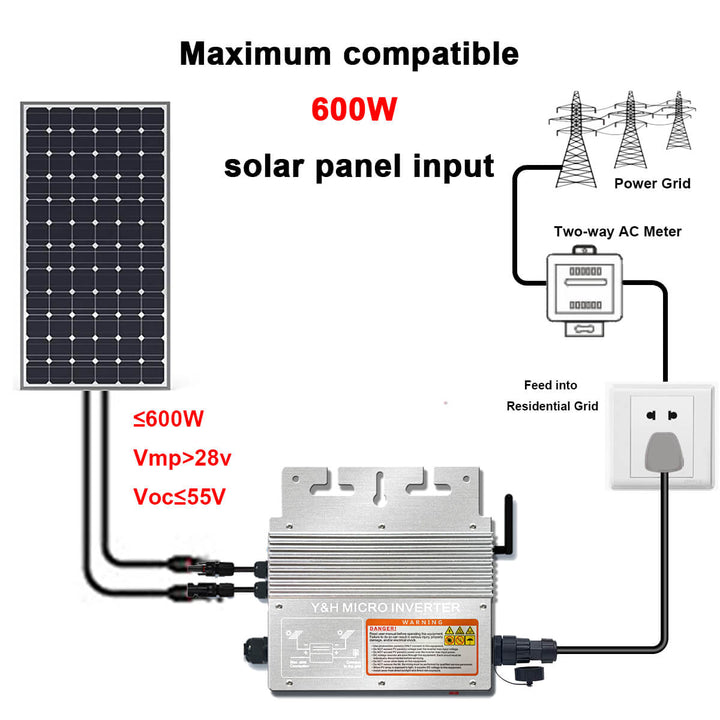

Maximum 600W input

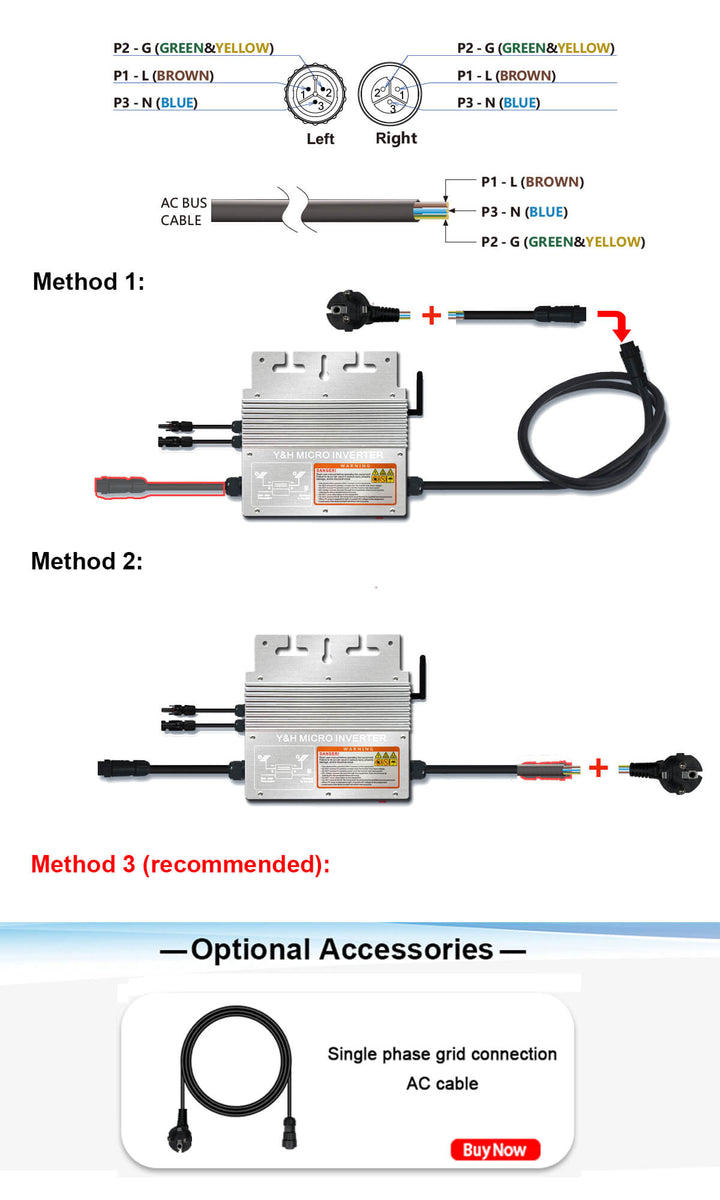

Integrated AC bus cable, Ready-To-Use
On Grid inverter Low cost, Easy installation and reduced maintenance costs

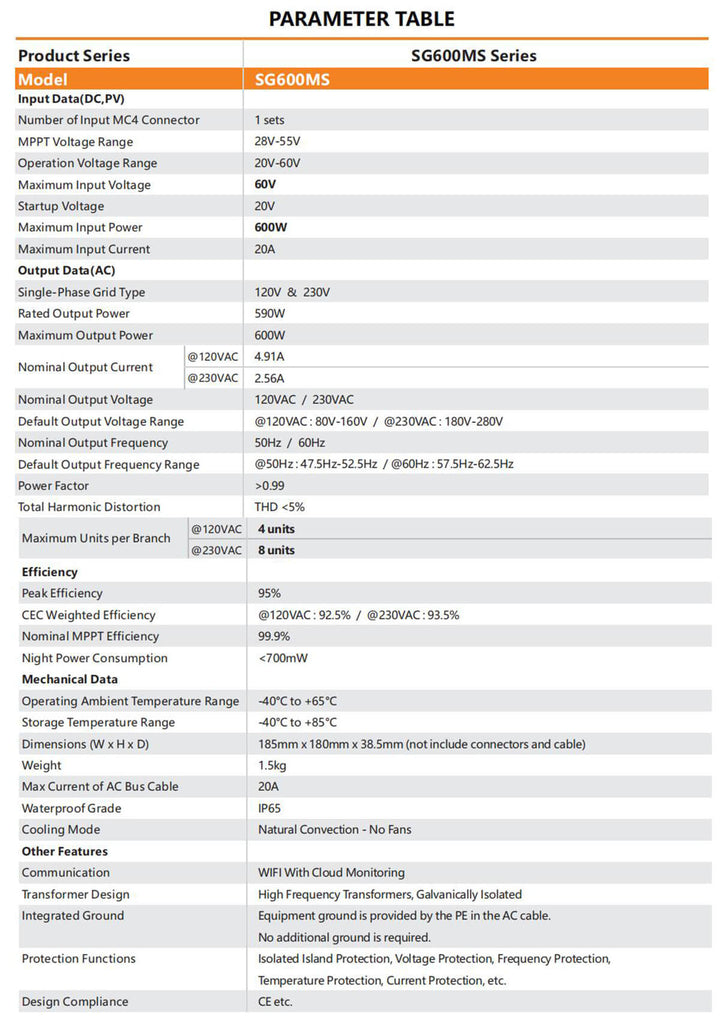

Technical Specifications：

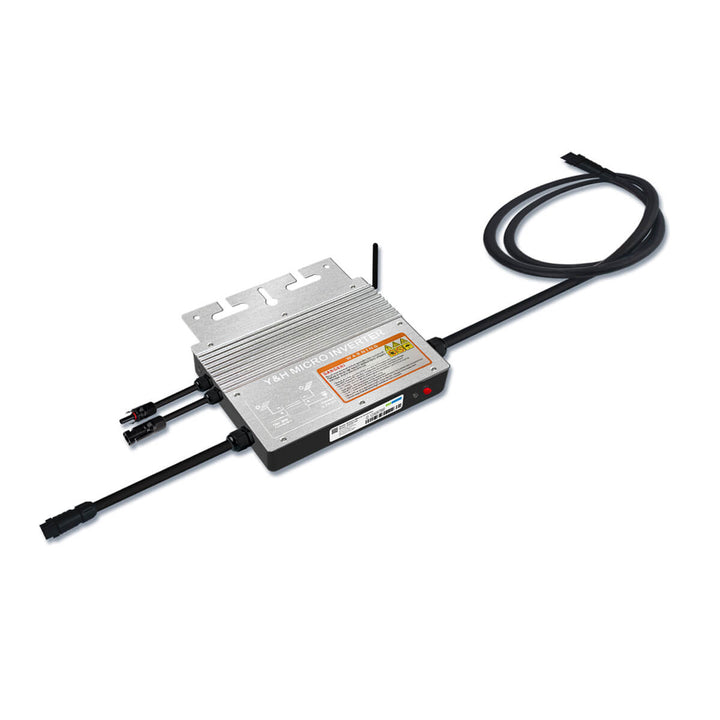

Model:SG-600W-WIFI-MS
MPPT Voltage Range:28V-50V
Operation Voltage Range:20V-55V
Maximum Input Voltage:55V
Startup Voltage:28V
Maximum Input Power:600W
Maximum Output Power:600W
Nominal Output Voltage：120VAC / 230VAC
Communication:WIFI With Cloud Monitoring
