Y&H 30A/40A/60A PWM Solar Charge Controller Max Pv 50V 12V 24V Auto LCD Display Battery Intelligent Regulator for Solar Panel

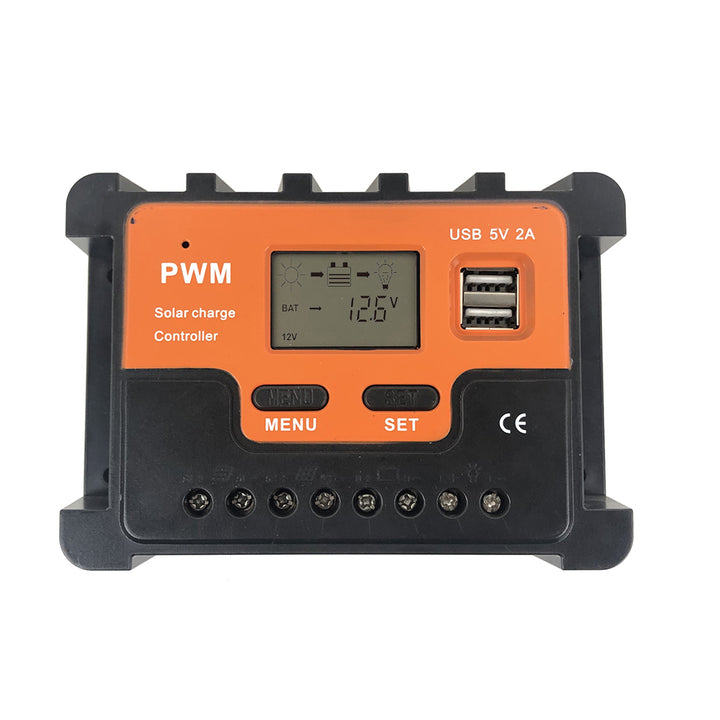

The LT controller is an intelligent, multi-purpose solar charge and discharge controller. It features a fixed LCD display with a very user-friendly interface and various control parameters can be set flexibly to meet your application requirements.

Charging efficiency is 15% higher than the same level of PWM controller; it can truly achieve PWM floating charge, they are suitable for solar charging and load charging control of batteries and battery packs, for large voltage off-grid solar systems.

Features:

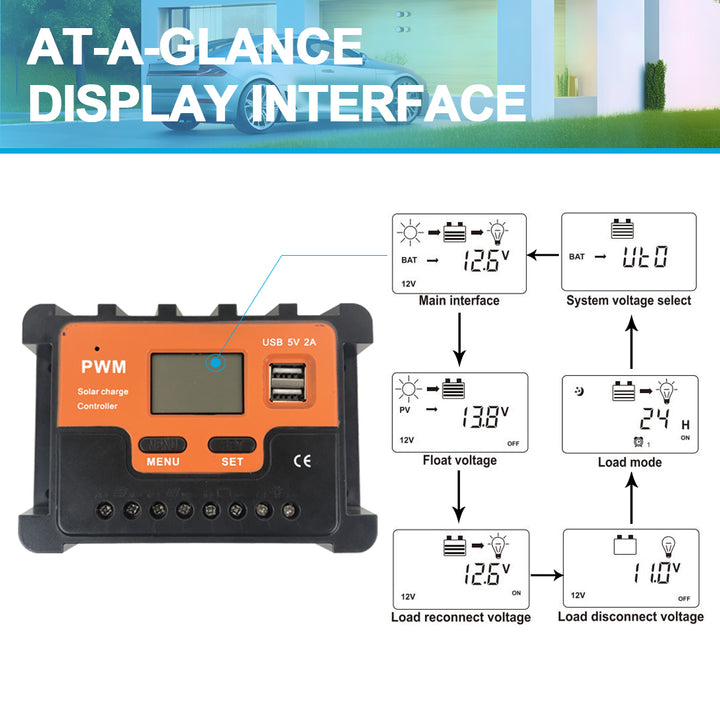

LCD graphic symbol image
Simple button operation
Automatic recognition of system voltage
Intelligent PWM charging mode
Adjustable charge and discharge control parameters
Set load operation mode
Reverse discharge of the battery
Protection against battery low voltage disconnection (LVD).
Battery reverse connection protection
Overcurrent protection.

Specification:
Model：FT3024/FT4024/FT6024
Battery Voltage：12V 24V Auto
Charging Current：30A/40A/60A
Max Solar input(Voc）：50V(for 12V/24V battery)
Output protection voltage：11.0V ADJ 9V...12V
Output recovery voltage：12.6V ADJ 11V...13.5V
Floating charge voltage：13.8V ADJ13V...15V
Boost charging：14.4V
Battery Over Voltage Protection：16.5
