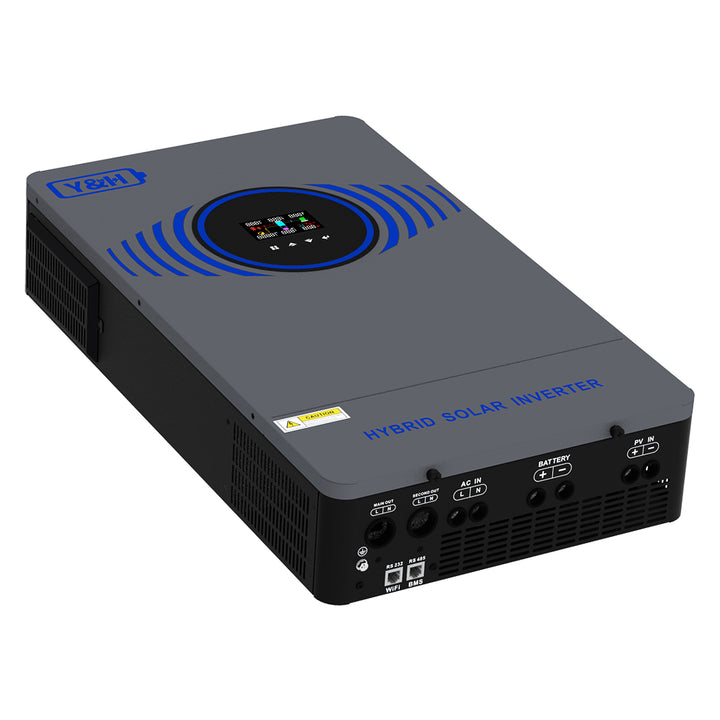

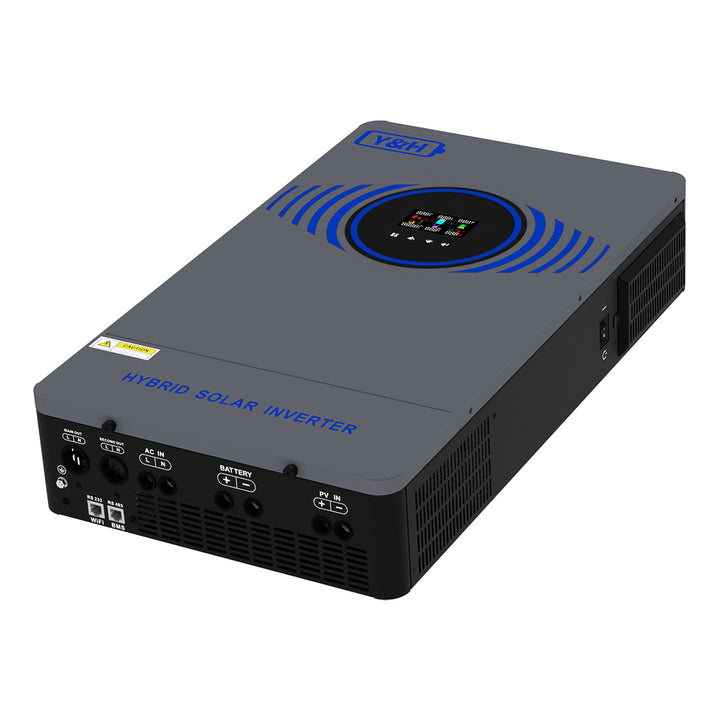

Y&H 6200W 48V Solar Hybrid Inverter Built-in Air Switch and Lightning Protection,Pure Sine Wave MPPT 120A Solar Charger Dual Load Output,WIFI+BMS Dual Communication,

€455,00 €389,99 SAVE 14%

paypal

Warranty service:
Our products provide 2-year free warranty and permanent after-sales services.

Description

For 110/120V US home appliances Devices:

you can simply add a Transformer (not includes) which stepping down 220/240V AC power to 110/120V AC Power, then your 110V home appliances is also ok to use at the same time, this inverter can't output 110V power, this is a Single-phase 220V output inverter. Ensure that you operate and use our products smoothly. Contact us if you have any questions.

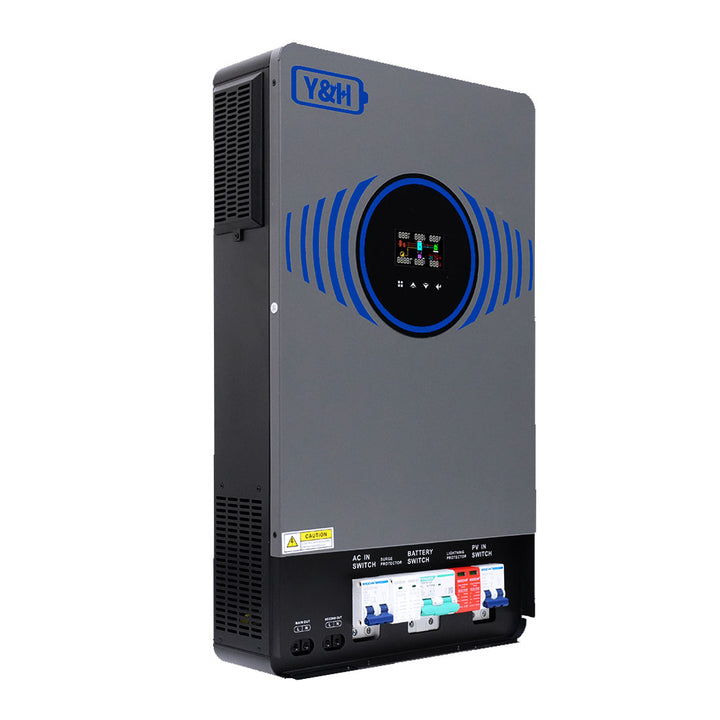

PURE SINE WAVE INVERTER6200W 48V Off-Grid Solar Inverter Built-in 120A MPPT Charge Controller, Pure Sine Wave Inverter Single-phase output 230VAC, 6.2kw new all-in-one inverter combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in a single package.

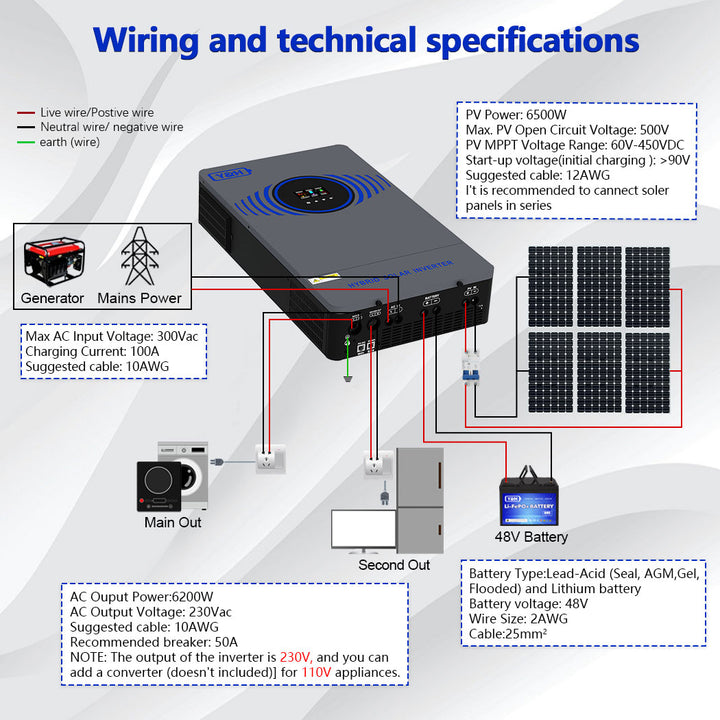

【TECHNICAL PARAMETERS】120A MPPT Solar Charging Inverter, MAX. PV Array Power: 6500W, Max.PV Open Circuit Voltage: 450Vdc; Starting voltage >90V, MAX. Charging Current:120A, PV Array MPPT Voltage Range: 60~450Vdc; Cold start function(46V).

【Enhance user experience】AC input has built-in air switch and surge protector, which is convenient for wiring and prevents over-voltage impact on the power grid; battery input is equipped with an air switch, and PV input has a built-in lightning protection device, which can effectively resist lightning strikes. The comprehensive protection configuration makes wiring easier and safer for users, reduces the risk of fire, and ensures stable operation of the system.

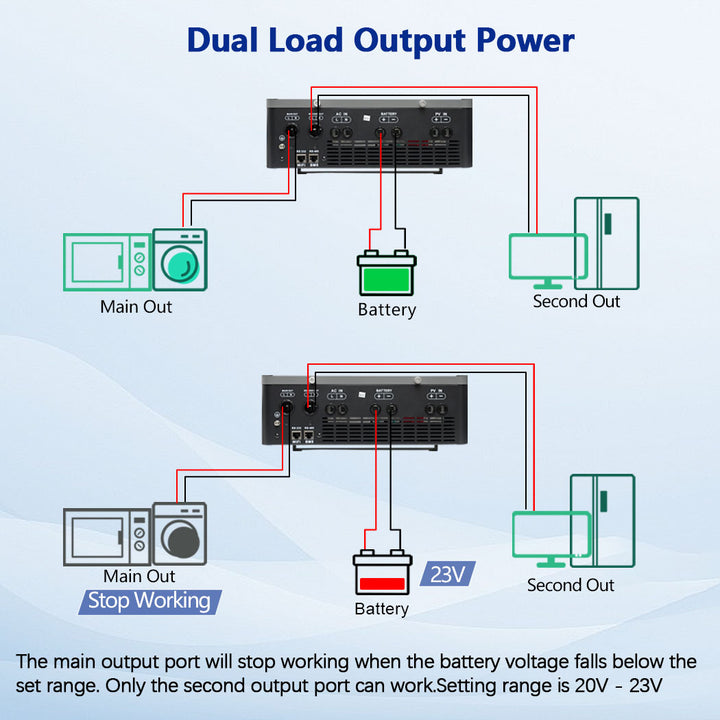

【TWO LOAD OUTPUT POWER】Setting range is from 40.0V to 46.0V for 6.2KW model. Increment of each click is 0.1V.   When the battery voltage falls below the setting range, the Main OUT port stops working.    Only the Second Out port will work.    For areas with frequent power outages and loads that can't be blacked out, you can set the battery voltage to 46V. Keep more battery capacity for emergencies.    If the battery voltage is higher than 46V, the Main OUT port will continue to work.

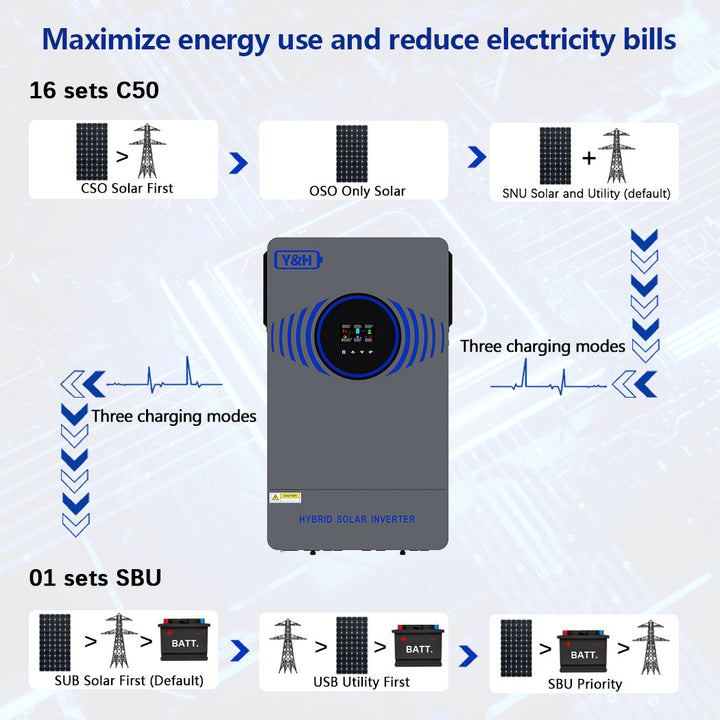

【DIVERSIFIES USES】On/ Off-grid working mode, you can use inverter as energy storage device without power Grid (Off Grid). Maybe you will also like to reduce the household electricity bill through it (On Grid).; Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning and other loads. 4 charging modes support: Solar first,Solar&Utility and Only Solar.

【Y&H can provide you with a battery package.】

The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise, it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

【Important Note】
1. In utility bypass mode, the device cannot be connected to two-phase 220V AC, i.e. L1-L2 cannot be connected to L-N.
2. In inverter mode, after the device is connected to two-phase 220V, please do not select utility priority for the output priority, so as not to cause safety hazards to the device.
3. Please do not connect the AC output of the device to the autotransformer, so as not to affect the normal service life of the device.
4.(Single phase/A Hot Leg 230V Output, Cannot Output 110V AC)
5.This Y&H off grid solar inverter all-in-one does not support parallel operation, and does not support phase separation!


Describe:

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

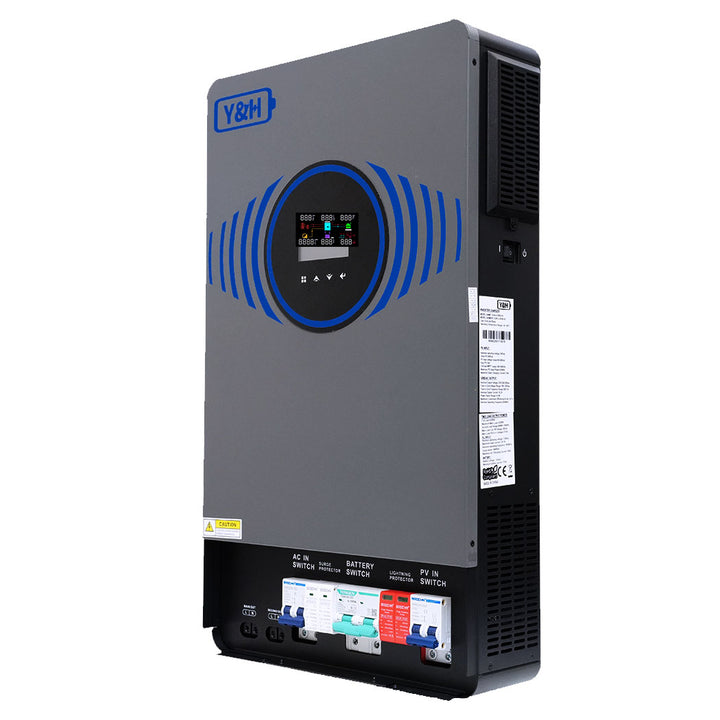

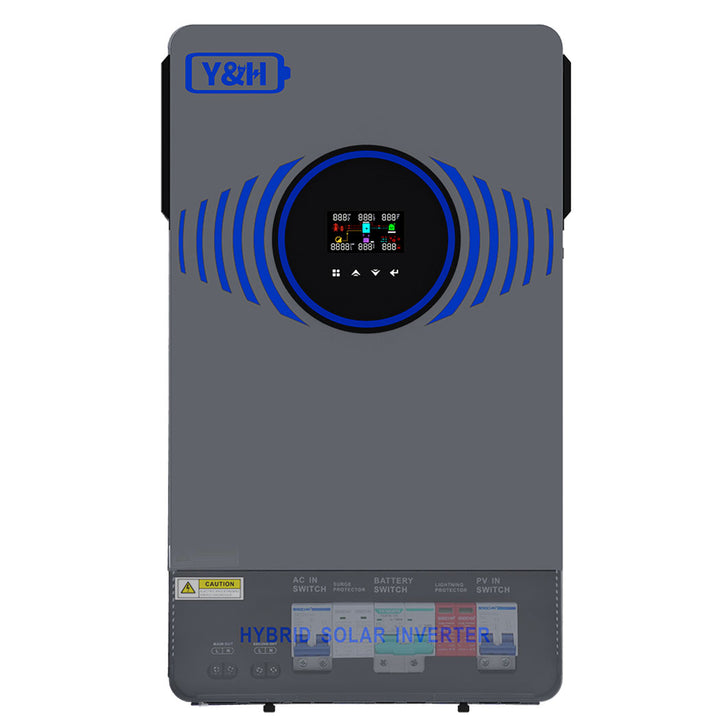

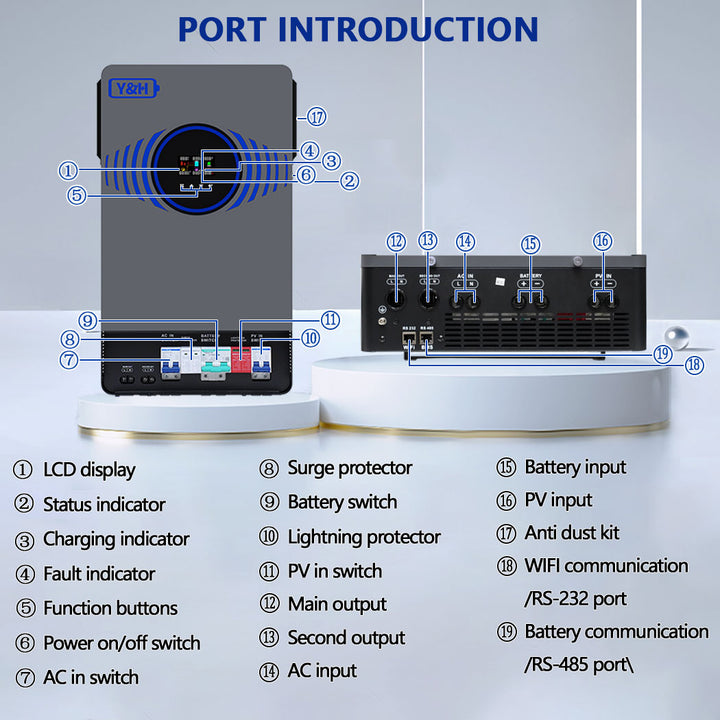

AC input & battery input built-in air switch

1:The air switch can quickly disconnect the power supply when the circuit is overloaded or shorted.

2:It can manually disconnect specific circuits when maintenance or troubleshooting is required.

3:Avoiding accidental current back-up or operating errors.


AC Input Configuration Surge Protector

1:Grid fluctuations, lightning strikes prevent transient overvoltage damage to equipment:

2:Reduce the surge caused by the aging of electronic components to extend the service life of the equipment:


PV input built-in lightning protection device

Prevent lightning strikes from causing system current and voltage fluctuations and improve stability.

Reduce lightning-induced overvoltage, thus extending equipment life


On Grid/Off-Grid Solar Inverter Features:

Pure sine wave solar inverter(on/off Grid)

Output power factor 1.0

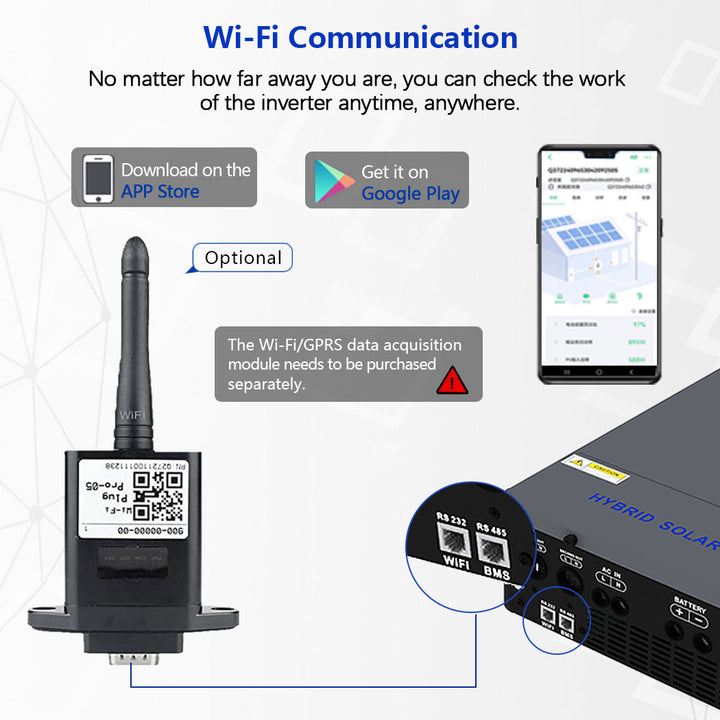

WIFl&GPRS available for lOS and Android(Excluding WiFi module)

Inverter can run without battery

One-key restoration to factory Settings

Built-in Lithium battery automatic activation

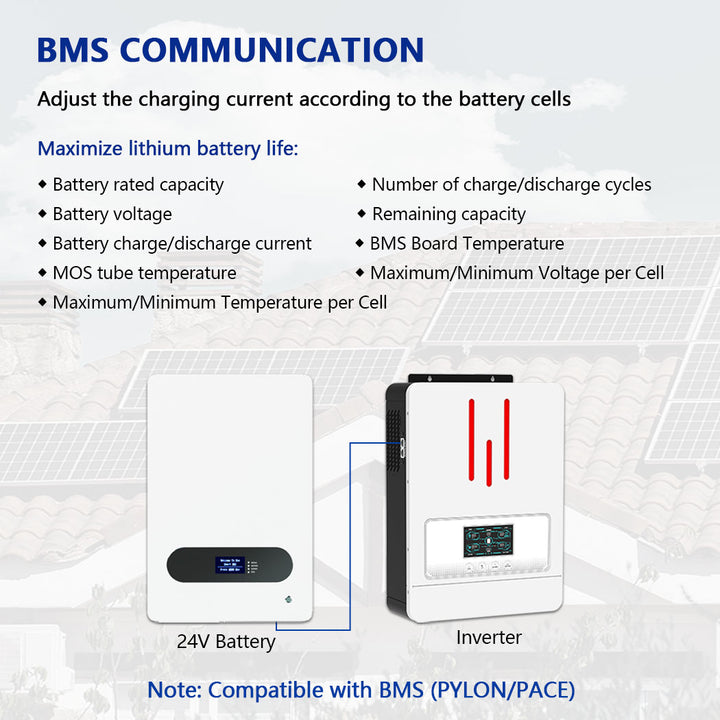

Dual communication ports for Battery communication and Wifi communication

Built-in 120A MPPT Solar charge :max 6200W

(for 4.2KW),max6500W(for 6.2KW)

High PV input voltage range(60~500VDC)

Built-in anti-dust kit for harsh environment

Smart battery charge design to optimize battery life

Dual output (the second load output power can be set from 20% to 70%)

Product Data Sheet
MODEL SUN-4.2KW-HV SUN-6.2KW-HV
Phase 1-phase
Maximum PV Input Power 6200W 6500W
Rated Output Power 4200W/4200VA 6200W/6200VA
Maximum Solar Charging Current 120A
GRID-TIE OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/lnitial Feeding Voltage 60VDC/90VDC
MPPT Voltage Range 60-450VDC
Maximum Input Current 1/18A 1/22A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195~253VAC
Nominal Output Current 18.2A 27.0A
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency(DC/AC) 98%
TWO LOAD OUTPUT POWER
Full Load 4200W 6200W
Maximum Main Load 4200W 6200W
Maximum Second Load(battery mode) power can be set from 20% to 70%
Maximum Load Cut Off Voltage 26VDC 52VDC
Maximum Load Return Voltage 27VDC 54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90~280VAC or 170-280VAC
Frequency Range 49~51±1HZ/59~61±1HZ
Maximum AC input Current 24.7A 36.4A
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
MPPT VolTtage Range 60~450VDC
Maximum Input Current 1/18A 1/22A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Wave Form Pure sine wave
Efficiency (DC to AC) 94%
BATTERY & CHARGER
Nominal DC Voltage 24VDC 48VDC
Maximum Solar Charging Current 120A 120A
Maximum AC Charging Current 100A 100A
Maximum Sotar+AC Charging Current 120A 120A
HYBRID OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage/Initial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 60~450VDC
Maximum Input Current 1/18A 1/22A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195~253VAC
Nominal Output Current 18.2A 27.0A
AC INPUT
AC Start-up Voltage/Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90-280VAC or 170-280VAC
Maximum AC Input Current 24.7A 36.4A
Maximum Charging Current 100A
GENERAL
PHYSICAL
Dimension ,H*W*D(mm) 602*358*113
Cartoon Dimension ,H*W*D(mm) 665*415*215
Net Weight (kgs) 12.9 13.3
Gross Weight(kgs) 14.5 14.9
INTERACE

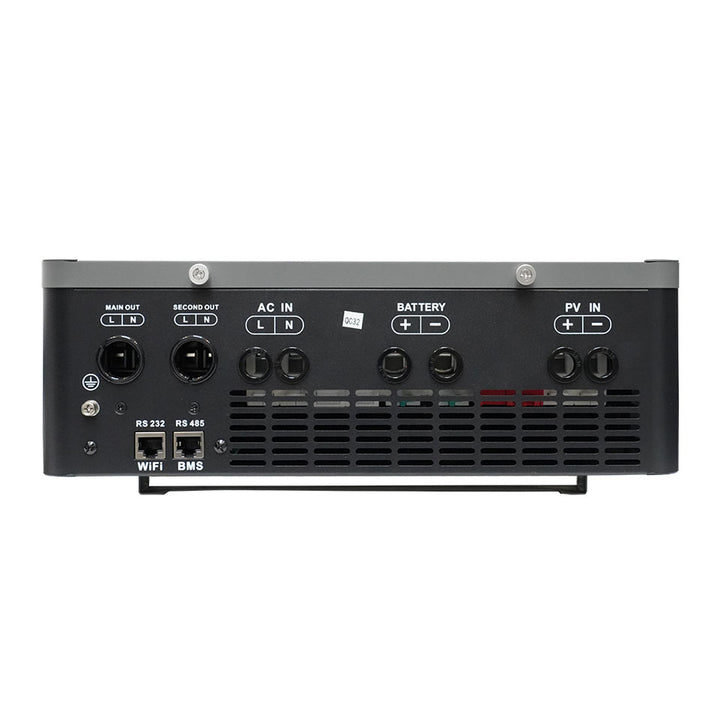

Communication Port RS232/RS485/WIFI/GPRS/LITHIUM BATTERY
ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non~condensing)
Operating Temperature -10℃~50℃
STANDARD
Compliance Safety CE
